Shop BANJO

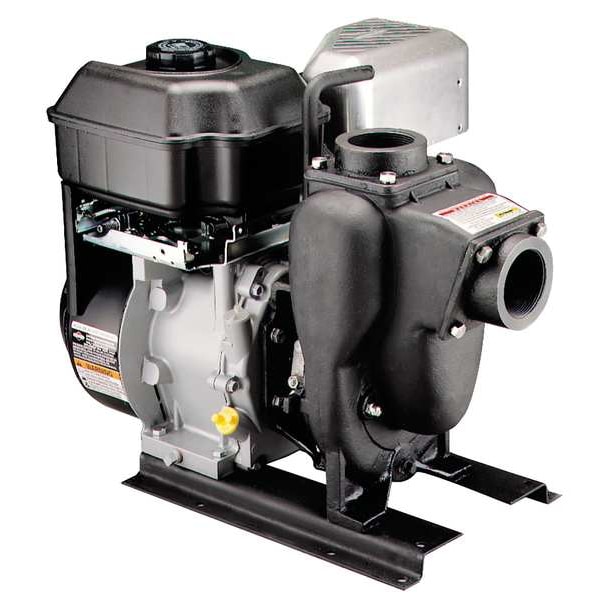

Pump, Engine Driven, 3-1/2 HP, Cast Iron

  • Mfr # 200PI-3

  • Zoro # G2745574

product price:  $901.99
/ea
Free Shipping & Returns

Key Features

Max. Suction Lift
12 ft
GPM of Water @ 80 Ft. of Head
45
GPM of Water @ 30 Ft. of Head
135
GPM of Water @ 90 Ft. of Head
35
Temp. Range
32 Degrees to 150 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
200PI-3
Zoro #
G2745574
UPC #
791206032291
Country of Origin
China

Dimensions

Engine Size
127 cc
Height
14"
Length
20"
Width
12"
Overall Length
20 in
Discharge Dia.
2 in
Overall Width
12 in
Inlet Dia.
2 in
Overall Height
14 in
Inlet Diameter
2 in
Discharge Diameter
2 in
Solids Diameter - Maximum
0 in
Manufacturers Warranty Length
1 yr
Wire Rope Length
20 in

Details

Max. Suction Lift
12 ft
GPM of Water @ 80 Ft. of Head
45
GPM of Water @ 30 Ft. of Head
135
GPM of Water @ 90 Ft. of Head
35
Temp. Range
32 Degrees to 150 Degrees F
GPM of Water @ 10 Ft. of Head
165
HP
3 1/2 hp
Seal Material
Viton
Volute/Wear Plate
Cast Iron
Agency Compliance
EPA
GPM of Water @ 70 Ft. of Head
47
Casing Adapter
Cast Iron
Ignition Type
Solid State
Engine RPM
3600
GPM of Water @ 20 Ft. of Head
150
Roll Bar Frame
None
Impeller Material
Cast Iron
Self-Priming
Yes
GPM of Water @ 60 Ft. of Head
80
Max. Head
100 ft
Max. Pressure
40 psi
Outlet
2" NPT
Application
Agricultural
GPM of Water @ 50 Ft. of Head
90
Check Valve
EPDM
Sensor Type
None
Engine Brand
Briggs & Stratton
GPM of Water @ 100 Ft. of Head
18
Item
Engine Driven Pump
Number of Impellers
1
Inlet
2 in FNPT
Mechanical Seal
Carbon, Ceramic
Impeller Type
Open
Engine/Motor Type
Gas
Tank Capacity
0.75 gal
Material of Construction
Cast Iron
GPM of Water @ 40 Ft. of Head
120
Frame Material
Cast Iron
Volute Material
Cast Iron
Inlet Standard
NPT
Pump Mechanism
Centrifugal
Discharge
2 in FNPT
Body Material
Cast Iron
Power Source
Gas Engine
Discharge Standard
NPT
Flow Rate @ 10 Ft. of Head
165 gpm
Maximum Discharge Pressure
40 psi
RPM
3,600 RPM
Flow Rate @ 20 Ft. of Head
150 gpm
Impeller Design
Open
Flow Rate @ 40 Ft. of Head
120 gpm
Discharge Gender
Female
Max. Liquid Temp.
300 Degrees F
Flow Rate @ 60 Ft. of Head
80 gpm
Inlet Gender
Female
Flow Rate @ 80 Ft. of Head
45 gpm
Maximum Self-Priming Lift
12 ft
Frame Design - Pumps
Frame Rails with Top Handle
Standards
EPA
Includes
None
Series
200 series Cast
Feet of Head - Maximum
100 ft
Rotation Speed - Maximum
3,600 RPM
For Media Type
Clear Water
Self-Priming Lift - Maximum
12 ft
Flow Rate @ 10 ft of Head
165 gpm
Frame Design
Frame Rails with Top Handle
Liquid Temperature - Maximum
300 Degrees F
Discharge Pressure - Maximum
40 psi
Flow Rate @ 20 ft of Head
150 gpm
Horsepower
3 1/2 hp
Suction Lift - Maximum
12 ft
Power Source - TS Only
Gas Engine

Description

Engine Driven Pump, Engine Size 127 cc, HP 3 1/2 hp, Tank Capacity 0.75 gal, Ignition Type Solid State, Pump Mechanism Centrifugal, Body Material Cast Iron, Volute Material Cast Iron, Seal Material Viton, Frame Material Cast Iron, Flow Rate @ 10 Ft. of Head 165 gpm, Flow Rate @ 20 Ft. of Head 150 gpm, Flow Rate @ 40 Ft. of Head 120 gpm, Flow Rate @ 60 Ft. of Head 80 gpm, Flow Rate @ 80 Ft. of Head 45 gpm, Max. Head 100 ft, Max. Suction Lift 12 ft, Maximum Self-Priming Lift 12 ft
