  11. Vacuum Motor/Blower, Peripheral, 1 Stage, 1 Speed, Acustek
Shop All AC Vacuum Motors
Ametek

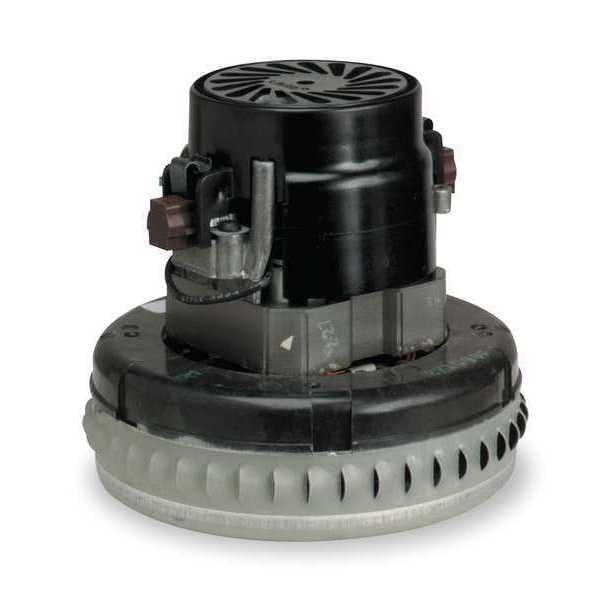

Vacuum Motor/Blower, Peripheral, 1 Stage, 1 Speed, Acustek

original price: $153.95
33% off
new price: $101.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Discharge Peripheral Bypass
  • Body Dia. 5.7 in
  • Voltage 120V AC
  • Blower Stages 1
  • CFM @ 2-In. Orifice 133 cfm
See all product information

Product Information

Dimensions

Body Dia. 5.7 in
Overall Height 5 3/16 in
Overall Length 5 1/4 in

Details

Discharge Peripheral Bypass
Voltage 120V AC
Blower Stages 1
CFM @ 2-In. Orifice 133 cfm
Mounting Brackets Thermoset
Motor Enclosure Design Open
Item Vacuum Motor
Average Life 500 hr
Max. Air Watts 291 W
Bearings Ball
Standards CSA Certified (LR31393), UL Recognized (E47185)
Replacement Brushes 152F62
Motor Thermal Protection None
Ambient Temperature 40 Degrees C
Phase Single
Hz 60/50
Vacuum (H2O Sealed) 49.5
Motor Design Universal AC/DC
No. of Speeds 1
Duty Intermittent
Motor Mounting Type Lug
Motor/Blower Type Bypass
Ins. Class A
Motor Mounting Position All Angle
Max. Amps 4.9 A
Footnotes 69
Motor Application Universal AC/DC Motor
Motor Bearings Ball, Sleeve
Mounting Bracket Material Aluminum
Duty Cycle Intermittent
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Full Load Amps @ 50Hz 7
Frame Non-Standard
Vacuum Rating 49.5
Nameplate RPM 23,125
Max. Ambient Temp. 40 Degrees C
Full Load Amps 7.0

Description

Vacuum Motor, Single Phase, Motor Design Universal AC/DC, Nameplate RPM 23,125, No. of Speeds 1, 120V AC Voltage, Full Load Amps 7.0, Non-Standard Frame, Motor/Blower Type Bypass, Max. Amps 4.9 A, 60/50 Hz, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 291 W, Vacuum Rating 49.5, CFM @ 2-In. Orifice 133 cfm
