Ametek

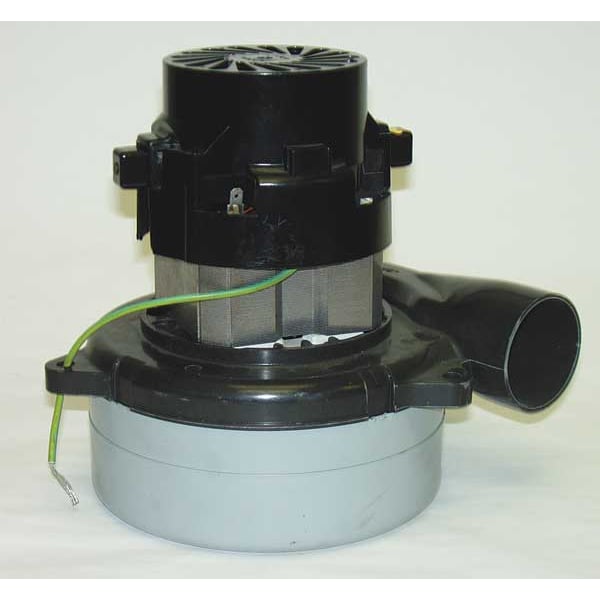

Vacuum Mtr/Blwr, Tangential, 2 Stge, 1 Spd

original price: $150.50
37% off
new price: $93.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Discharge Tangential Bypass
  • Body Dia. 5.7 in
  • Voltage 120V AC
  • Blower Stages 2
  • CFM @ 2-In. Orifice 97 cfm
See all product information

Product Information

Dimensions

Body Dia. 5.7 in
Overall Height 6 1/2 in
Overall Length 6 9/16 in
Inlet Tube Dia. 1 7/8 in

Details

Discharge Tangential Bypass
Voltage 120V AC
Blower Stages 2
CFM @ 2-In. Orifice 97 cfm
Mounting Brackets Thermoset
Motor Enclosure Design Open
Motor/Blower Type Bypass
Motor Design Universal AC/DC
Ambient Temperature 40 Degrees C
Vacuum (H2O Sealed) 81.8
Max. Amps 8.6 A
Phase Single
Motor Mounting Type Lug
Motor Mounting Position All Angle
Standards UL recognized, category PRGY2 (E47185)
Max. Air Watts 250 W
Motor Thermal Protection None
No. of Speeds 1
Motor Efficiency Group Standard Efficient
Hz 60/50
Bearings Ball
Item Vacuum Motor
Average Life 500 hr
Replacement Brushes Mfr. No. 33474
Duty Intermittent
Ins. Class A
Full Load Amps @ 50Hz 8.6
Max. Ambient Temp. 40 Degrees C
Frame Non-Standard
Vacuum Rating 81.8
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Bearing Protection Air Sealed
Motor Application Universal AC/DC Motor
Nameplate RPM 22,210
Duty Cycle Intermittent
Full Load Amps 8.6
Voltage @ 50Hz 120V AC
Motor Bearings Ball

Description

Vacuum Motor, Single Phase, Motor Design Universal AC/DC, Nameplate RPM 22,210, No. of Speeds 1, 120V AC Voltage, Full Load Amps 8.6, Non-Standard Frame, Motor/Blower Type Bypass, Max. Amps 8.6 A, 60/50 Hz, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 250 W, Vacuum Rating 81.8, CFM @ 2-In. Orifice 97 cfm, Motor Bearings Ball
