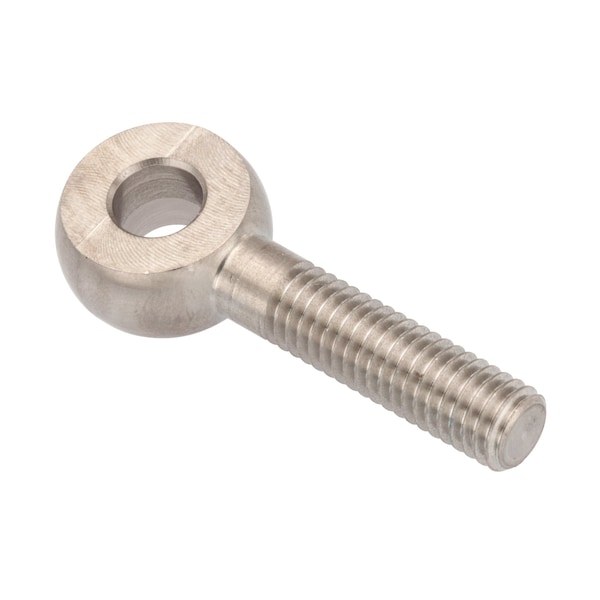

Fixed Rod End, Stainless Steel, Plain
Mfr # ZEBM5X25-316
Zoro # G010724337
product price:Â
$
10.19
/ea
Key Features
Type
Fixed Rod End
Thread Size
M5x0.80
Shank Thread Size
M5-0.8
Rod End Type
Spherical Rod End
System of Measurement
Metric
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZEBM5X25-316
- Zoro #
- G010724337
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Thread Size
- M5x0.80
- Shank Thread Size
- M5-0.8
- Head Outside Diameter
- 12 mm
- Overall Length
- 31 mm
- Head Width
- 6 mm
- Ball Diameter
- 5 mm
- Shank Thread Length
- 16 mm
- Bore Diameter
- 5 mm
- Shank Diameter
- 5 mm
- Shank Length
- 19 mm
- Hole Center-to-End Length
- 25 mm
- Eye Thickness
- 6 mm
- Eye Outside Diameter
- 12 mm
- Eye Inside Diameter
- 5 mm
- Screw Size
- 5 mm
- Thread Length
- 16 mm
- Wire Rope Length
- 31 mm
- Minimum Thread Length
- 16 mm
- Length
- 31 mm
Description
Fixed Rod End, Eye Inside Diameter 5 mm, Eye Outside Diameter 12 mm, Eye Thickness 6 mm, Plain, Stainless Steel, Material Grade/Class 316, Material Quality Standards ASTM A276, REACH Compliant Yes, Hole Center-to-End Length 25 mm, RoHS Compliant Yes, Shank Diameter 5 mm, Thread Style Fully Threaded, Metric Coarse, Thread Direction Right Hand, Thread Length 16 mm, Thread Pitch 0.8 mm, Thread Size M5x0.80, Shank Length 19 mm, Externally Threaded, Shoulder Style Without Shoulder
