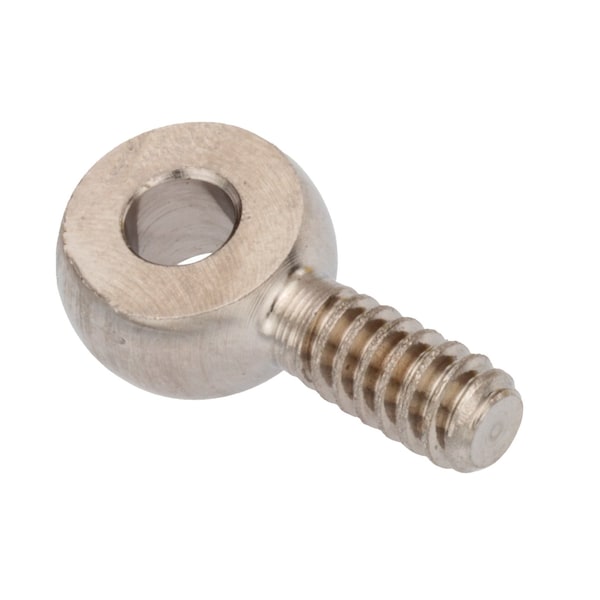

Fixed Rod End, Stainless Steel, Plain
Mfr # ZEBM6X30-174
Zoro # G810724032
product price:Â $16.69
/eaKey Features
Type
Fixed Rod End
Thread Size
M6-1.00
System of Measurement
Metric
Resistance Properties
Chemical Resistant, Corrosion Resistant
Head Width
7 mm
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- ZEBM6X30-174
- Zoro #
- G810724032
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Thread Size
- M6-1.00
- Head Width
- 7 mm
- Head Outside Diameter
- 14 mm
- Shank Thread Size
- M6-1.0
- Overall Length
- 37 mm
- Shank Thread Length
- 18 mm
- Ball Diameter
- 6 mm
- Bore Diameter
- 6 mm
- Shank Diameter
- 6 mm
- Eye Thickness
- 7 mm
- Screw Size
- 6 mm
- Eye Outside Diameter
- 14 mm
- Hole Center-to-End Length
- 30 mm
- Thread Length
- 18 mm
- Eye Inside Diameter
- 6 mm
- Shank Length
- 23 mm
Description
Fixed Rod End, Eye Inside Diameter 6 mm, Eye Outside Diameter 14 mm, Eye Thickness 7 mm, Plain, Stainless Steel, Material Grade/Class 17-4, Material Quality Standards ASTM A693, REACH Compliant Yes, Hole Center-to-End Length 30 mm, RoHS Compliant Yes, Shank Diameter 6 mm, Thread Style Fully Threaded, Metric Coarse, Thread Direction Right Hand, Thread Length 18 mm, Thread Pitch 1 mm, Thread Size M6-1.00, Shank Length 23 mm, Externally Threaded, Shoulder Style Without Shoulder
