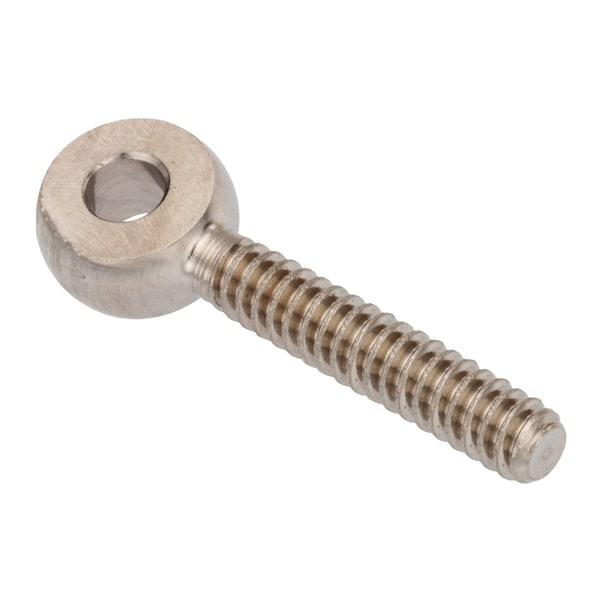

Fixed Rod End, Stainless Steel, Plain
Mfr # ZEBM6X60-LH
Zoro # G910724000
product price:Â
$
18.19
/ea
Key Features
Type
Fixed Rod End
Thread Size
M6x1.00
Resistance Properties
Chemical-Resistant, Corrosion-Resistant
Head Width
7 mm
Shank Thread Length
46 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZEBM6X60-LH
- Zoro #
- G910724000
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Thread Size
- M6x1.00
- Head Width
- 7 mm
- Shank Thread Length
- 46 mm
- Overall Length
- 67 mm
- Shank Thread Size
- M6-1.0
- Ball Diameter
- 6 mm
- Head Outside Diameter
- 14 mm
- Bore Diameter
- 6 mm
- Eye Thickness
- 7 mm
- Shank Diameter
- 6 mm
- Screw Size
- 6 mm
- Eye Outside Diameter
- 14 mm
- Thread Length
- 46 mm
- Hole Center-to-End Length
- 60 mm
- Eye Inside Diameter
- 6 mm
- Shank Length
- 53 mm
- Wire Rope Length
- 67 mm
- Minimum Thread Length
- 46 mm
- Length
- 67 mm
Description
Fixed Rod End, Eye Inside Diameter 6 mm, Eye Outside Diameter 14 mm, Eye Thickness 7 mm, Plain, Stainless Steel, Material Grade/Class 304, Material Quality Standards ASTM A582, REACH Compliant Yes, Hole Center-to-End Length 60 mm, RoHS Compliant Yes, Shank Diameter 6 mm, Thread Style Fully Threaded, Metric Coarse, Thread Direction Left Hand, Thread Length 46 mm, Thread Pitch 1 mm, Thread Size M6x1.00, Shank Length 53 mm, Externally Threaded, Shoulder Style Without Shoulder
