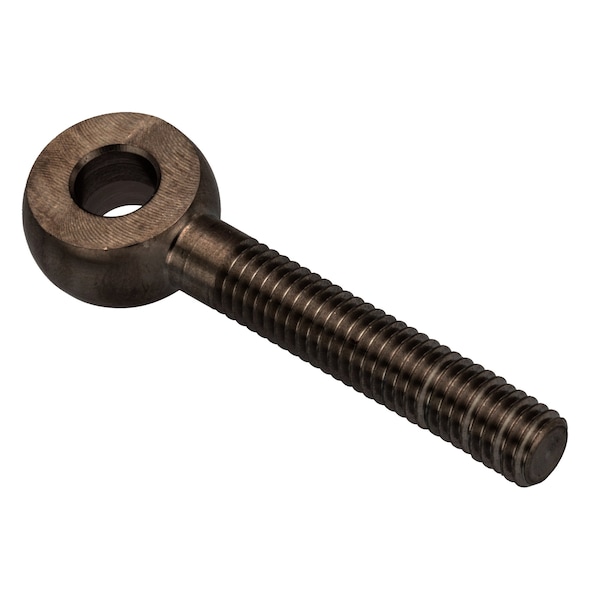

Fixed Rod End, Steel, Black Oxide
Mfr # ZEBM5X50LH-STL-BX
Zoro # G110724312
product price: $16.19
/eaKey Features
Type
Fixed Rod End
Thread Size
M5-0.8
Shank Thread Size
M5-0.8
Shank Thread Length
36 mm
System of Measurement
Metric
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
ZEBM5X50LH-STL-BX
Zoro #
G110724312
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
M5-0.8
Shank Thread Size
M5-0.8
Shank Thread Length
36 mm
Ball Diameter
5 mm
Head Width
6 mm
Head Outside Diameter
12 mm
Overall Length
56 mm
Bore Diameter
5 mm
Hole Center-to-End Length
50 mm
Shank Length
44 mm
Screw Size
5 mm
Shank Diameter
5 mm
Eye Inside Diameter
5 mm
Eye Outside Diameter
12 mm
Eye Thickness
6 mm
Thread Length
36 mm
Description
Fixed Rod End, Eye Inside Diameter 5 mm, Eye Outside Diameter 12 mm, Eye Thickness 6 mm, Black Oxide, Steel, Material Grade/Class 12L14, Material Quality Standards ASTM A576, REACH Compliant Yes, Hole Center-to-End Length 50 mm, RoHS Compliant Yes, Shank Diameter 5 mm, Thread Style Fully Threaded, Metric Coarse, Thread Direction Left Hand, Thread Length 36 mm, Thread Pitch 0.8 mm, Thread Size M5-0.8, Shank Length 44 mm, Externally Threaded, Shoulder Style Without Shoulder
