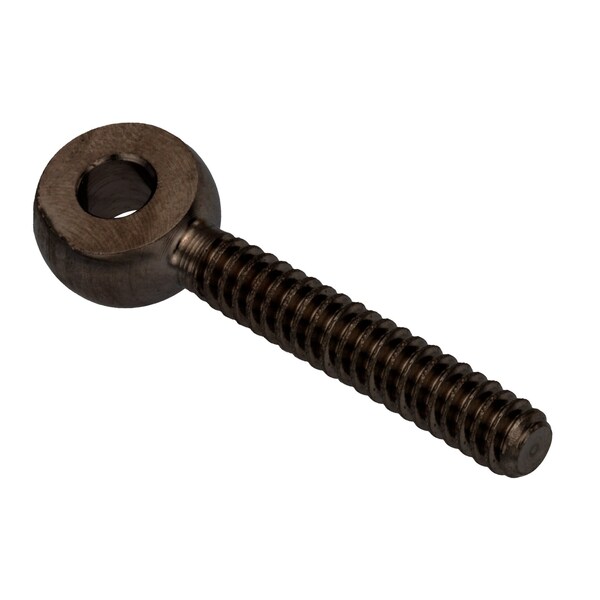

Fixed Rod End, Steel, Black Oxide
Mfr # ZEBM6X70LH-STL-BX
Zoro # G210724045
product price: $23.69
/eaKey Features
Type
Fixed Rod End
Thread Size
M6-1.00
System of Measurement
Metric
Shank Thread Length
56 mm
Shank Thread Size
M6-1.0
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
ZEBM6X70LH-STL-BX
Zoro #
G210724045
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
M6-1.00
Shank Thread Length
56 mm
Shank Thread Size
M6-1.0
Ball Diameter
6 mm
Overall Length
77 mm
Head Outside Diameter
14 mm
Head Width
7 mm
Bore Diameter
6 mm
Eye Thickness
7 mm
Screw Size
6 mm
Shank Length
63 mm
Eye Inside Diameter
6 mm
Shank Diameter
6 mm
Thread Length
56 mm
Hole Center-to-End Length
70 mm
Eye Outside Diameter
14 mm
Description
Fixed Rod End, Eye Inside Diameter 6 mm, Eye Outside Diameter 14 mm, Eye Thickness 7 mm, Black Oxide, Steel, Material Grade/Class 12L14, Material Quality Standards ASTM A576, REACH Compliant Yes, Hole Center-to-End Length 70 mm, RoHS Compliant Yes, Shank Diameter 6 mm, Thread Style Fully Threaded, Metric Coarse, Thread Direction Left Hand, Thread Length 56 mm, Thread Pitch 1 mm, Thread Size M6-1.00, Shank Length 63 mm, Externally Threaded, Shoulder Style Without Shoulder
