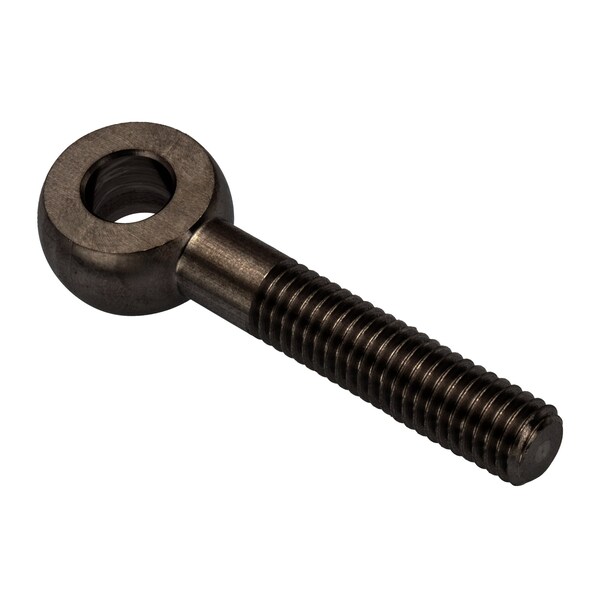

Fixed Rod End, Steel, Black Oxide
Mfr # ZEBM8X40LH-STL-BX
Zoro # G710724064
product price:Â
$
19.89
/ea
Key Features
Type
Fixed Rod End
Thread Size
M8x1.25
System of Measurement
Metric
Head Outside Diameter
18 mm
Housing Material
Alloy Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZEBM8X40LH-STL-BX
- Zoro #
- G710724064
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Thread Size
- M8x1.25
- Head Outside Diameter
- 18 mm
- Shank Thread Length
- 24 mm
- Overall Length
- 49 mm
- Shank Thread Size
- M8-1.25
- Ball Diameter
- 8 mm
- Head Width
- 9 mm
- Bore Diameter
- 8 mm
- Shank Length
- 31 mm
- Hole Center-to-End Length
- 40 mm
- Eye Inside Diameter
- 8 mm
- Eye Thickness
- 9 mm
- Thread Length
- 24 mm
- Shank Diameter
- 8 mm
- Eye Outside Diameter
- 18 mm
- Screw Size
- 8 mm
- Wire Rope Length
- 49 mm
- Minimum Thread Length
- 24 mm
- Length
- 49 mm
Description
Fixed Rod End, Eye Inside Diameter 8 mm, Eye Outside Diameter 18 mm, Eye Thickness 9 mm, Black Oxide, Steel, Material Grade/Class 12L14, Material Quality Standards ASTM A576, REACH Compliant Yes, Hole Center-to-End Length 40 mm, RoHS Compliant Yes, Shank Diameter 8 mm, Thread Style Fully Threaded, Metric Coarse, Thread Direction Left Hand, Thread Length 24 mm, Thread Pitch 1.25 mm, Thread Size M8x1.25, Shank Length 31 mm, Externally Threaded, Shoulder Style Without Shoulder
