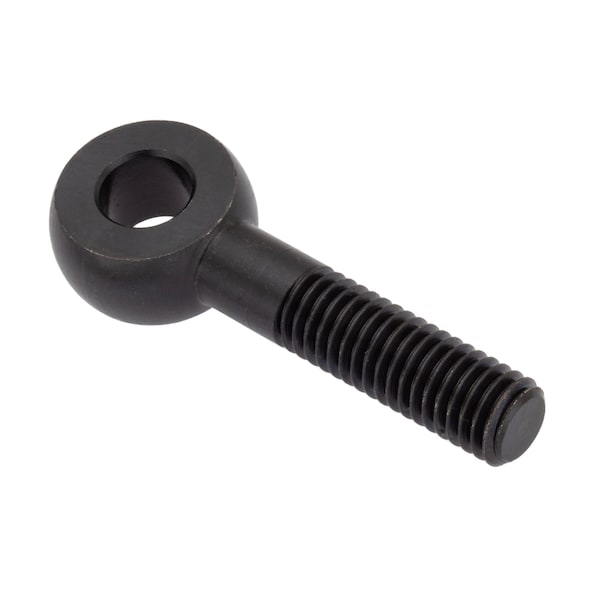

Fixed Rod End, Steel, Black Oxide
Mfr # ZEBM8X45LH-STL-BX
Zoro # G210724069
product price:Â
$
20.69
/ea
Key Features
Type
Fixed Rod End
Thread Size
M8x1.25
Ball Diameter
8 mm
Shank Thread Size
M8-1.25
Head Outside Diameter
18 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZEBM8X45LH-STL-BX
- Zoro #
- G210724069
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Thread Size
- M8x1.25
- Ball Diameter
- 8 mm
- Shank Thread Size
- M8-1.25
- Head Outside Diameter
- 18 mm
- Overall Length
- 54 mm
- Shank Thread Length
- 29 mm
- Head Width
- 9 mm
- Bore Diameter
- 8 mm
- Screw Size
- 8 mm
- Eye Outside Diameter
- 18 mm
- Hole Center-to-End Length
- 45 mm
- Eye Thickness
- 9 mm
- Shank Diameter
- 8 mm
- Shank Length
- 36 mm
- Eye Inside Diameter
- 8 mm
- Thread Length
- 29 mm
- Wire Rope Length
- 54 mm
- Minimum Thread Length
- 29 mm
- Length
- 54 mm
Description
Fixed Rod End, Eye Inside Diameter 8 mm, Eye Outside Diameter 18 mm, Eye Thickness 9 mm, Black Oxide, Steel, Material Grade/Class 12L14, Material Quality Standards ASTM A576, REACH Compliant Yes, Hole Center-to-End Length 45 mm, RoHS Compliant Yes, Shank Diameter 8 mm, Thread Style Fully Threaded, Metric Coarse, Thread Direction Left Hand, Thread Length 29 mm, Thread Pitch 1.25 mm, Thread Size M8x1.25, Shank Length 36 mm, Externally Threaded, Shoulder Style Without Shoulder
