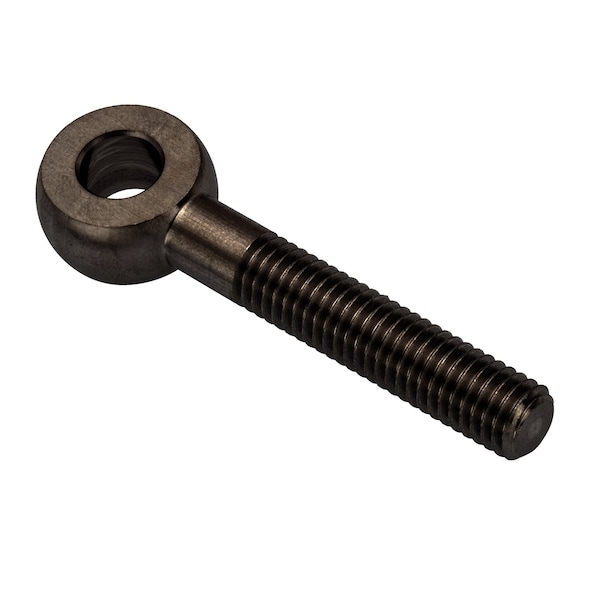

Fixed Rod End, Steel, Black Oxide
Mfr # ZEBM8X60-STL-BX
Zoro # G610723914
product price:Â
$
19.15
/ea
Key Features
Type
Fixed Rod End
Thread Size
M8x1.25
Overall Length
69 mm
Head Outside Diameter
18 mm
Rod End Type
Spherical Rod End
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZEBM8X60-STL-BX
- Zoro #
- G610723914
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Thread Size
- M8x1.25
- Overall Length
- 69 mm
- Head Outside Diameter
- 18 mm
- Shank Thread Size
- M8-1.25
- Shank Thread Length
- 44 mm
- Head Width
- 9 mm
- Ball Diameter
- 8 mm
- Bore Diameter
- 8 mm
- Eye Outside Diameter
- 18 mm
- Thread Length
- 44 mm
- Screw Size
- 8 mm
- Shank Length
- 51 mm
- Eye Thickness
- 9 mm
- Hole Center-to-End Length
- 60 mm
- Shank Diameter
- 8 mm
- Eye Inside Diameter
- 8 mm
- Wire Rope Length
- 69 mm
- Minimum Thread Length
- 44 mm
- Length
- 69 mm
Description
Fixed Rod End, Eye Inside Diameter 8 mm, Eye Outside Diameter 18 mm, Eye Thickness 9 mm, Black Oxide, Steel, Material Grade/Class 12L14, Material Quality Standards ASTM A576, REACH Compliant Yes, Hole Center-to-End Length 60 mm, RoHS Compliant Yes, Shank Diameter 8 mm, Thread Style Fully Threaded, Metric Coarse, Thread Direction Right Hand, Thread Length 44 mm, Thread Pitch 1.25 mm, Thread Size M8x1.25, Shank Length 51 mm, Externally Threaded, Shoulder Style Without Shoulder
