  9. Clamp-On Power Meter, LCD, 600 kW, 600 A, CAT IV Safety Rating, AA Batteries Power Source

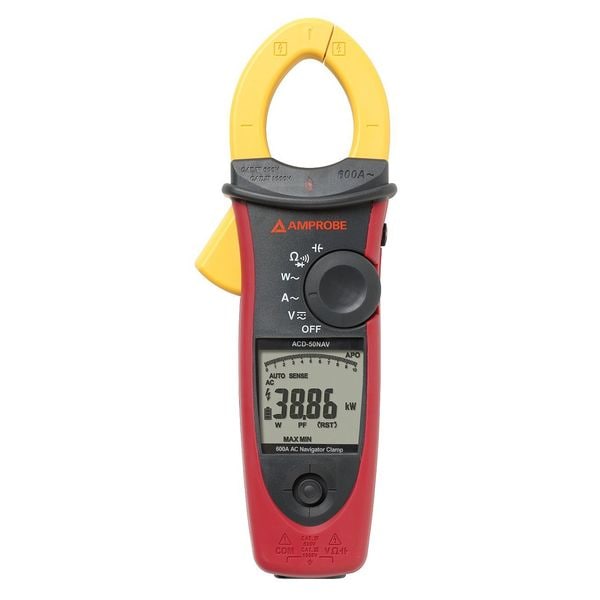

Amprobe Clamp-On Power Meter, LCD, 600 kW, 600 A, CAT IV Safety Rating, AA Batteries Power Source ACD-50NAV - main

Clamp-On Power Meter, LCD, 600 kW, 600 A, CAT IV Safety Rating, AA Batteries Power Source

  • Mfr # ACD-50NAV

  • Zoro # G3711863

product price: $379.99
/ea
Free Shipping & Returns

Key Features

Max. Watts
600 kW
Max. AC Amps
600
Max. DC Volts
1,000
Safety Rating
CAT IV
Power Source
AA Batteries
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ACD-50NAV
Zoro #
G3711863
UPC #
095969556637
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
1 yr
Battery Size
AA

Details

Item
Clamp-On Power Meter
Max. Watts
600 kW
Max. AC Amps
600
Max. DC Volts
1,000
Safety Rating
CAT IV
Power Source
AA Batteries
Display
LCD
Jaw Opening
1.45 in
Max. AC Volts
1,000
Voltage Accuracy
AC +/-1.0% Rdg +5 Digits, DC +/-0.7% Rdg +2 Digits
Current Accuracy
+/-1.5% Rdg +5 Digits
Calibration Frequency
20 Hz to 10 KHz
Special Features
Continuity Beeper Quickly Identifies Shorts and Opens, Inrush Current Measurement and Phase Rotation Indication for 3-Phase Motors, Low Pass Filter Allows Measurement of Voltage and Frequency of Variable Frequency Drives, Non-Contact Voltage Detection Enhances Safety
Power Accuracy
+/-2.5% Rdg +5 Digits
Max. Resistance
100 K Ohms
Counts
10,000
Includes
Carrying Case, Test Leads
Peak Capture
Yes
True RMS
Yes
Power Factor
-1.00 to 1.00
Operating Temp. Range
32 Degrees to 122 Degrees F (0 Degrees C to 50 Degrees C)
Auto Power Off
Yes
Data Hold
Yes
Audible Continuity
Yes
Peak Hold
Yes
Frequency Counter
20.0Hz to 10KHz
Diode Test
No
Non-Contact Voltage Detector
Yes
Auto Ranging
Yes
Temperature Measurement Accuracy
+/-1.00%
Maximum DC Voltage Measurement
1,000 V
Minimum Wattage
10 kW
Maximum Power
600 kW
Maximum Operating Temperature
122 Degrees F
Battery Chemistry
Alkaline
Wattage Measurement Accuracy
+/-2.50%
Display Type
Backlit Digital Display
Frequency Measurement Accuracy
+/-0.50%
Batteries Included
Yes
Minimum Resistance Measurement
1 kiloohm
Minimum Frequency Measurement
20 Hz
Intrinsically Safe
No
Resistance Measurement Accuracy
+/-1.00%
Minimum AC Current Measurement
100 A
Maximum Storage Temperature
50 Degrees F
Basic DC Current Accuracy
+/-1.50%
Minimum DC Voltage Measurement
100 V
Basic AC Voltage Accuracy
+/-1.00%
Maximum Frequency Measurement
10 kHz
Maximum Capacitance Measurement
4 mF
Minimum Operating Temperature
32 Degrees F
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Voltage, Frequency, Resistance
Capacitance Measurement Accuracy
+/-1.90%
Minimum Power
10 kW
Maximum Resistance Measurement
100 kiloohm
Basic AC Current Accuracy
+/-1.50%
Minimum AC Voltage Measurement
100 V
Basic DC Voltage Accuracy
+/-0.70%
Maximum AC Voltage Measurement
1,000 V
Power Measurement Accuracy
+/-2.50%
Minimum Storage Temperature
-4 Degrees F
Minimum Capacitance Measurement
400 uF
Maximum Wattage
600 kW
Battery Voltage
1,000V; 100V
Maximum AC Current Measurement
600 A

Description

Clamp On Power Meter, Basic AC Current Accuracy +/-1.50 Percent, Basic AC Voltage Accuracy +/-1.00 Percent, Basic DC Current Accuracy +/-1.50 Percent, Basic DC Voltage Accuracy +/-0.70 Percent, Batteries Included Yes, Battery Chemistry Alkaline, Battery Size AA, Battery Voltage 1,000V; 100V, Calibration Certificate Included Traceable without Data, Calibration Frequency 20 Hz to 10 KHz, Capacitance Measurement Accuracy +/-1.90 Percent, Counts 10,000, Data Logging No, Display Type Backlit LCD
