  9. Digital Clamp Meter, Backlit, 1,000 A, 2.0 in (51 mm) Jaw Capacity

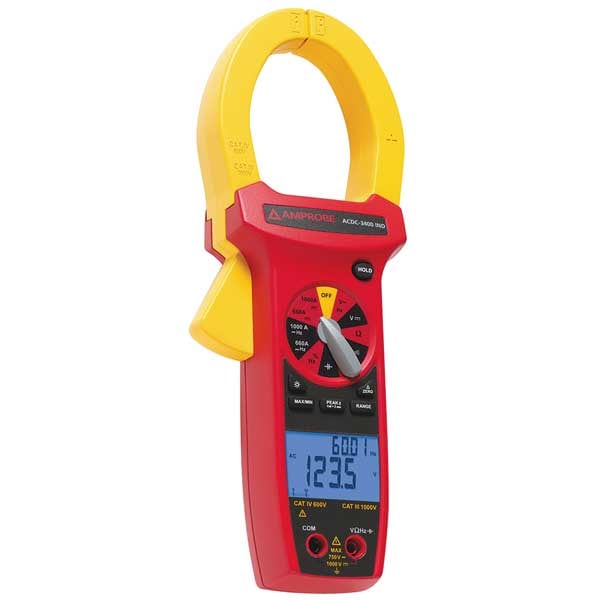

Amprobe Digital Clamp Meter, Backlit, 1,000 A, 2.0 in (51 mm) Jaw Capacity ACDC-3400 IND - main

Digital Clamp Meter, Backlit, 1,000 A, 2.0 in (51 mm) Jaw Capacity

  • Mfr # ACDC-3400 IND

  • Zoro # G0942916

product price: $691.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Max. AC Amps
1,000
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
1,000 V
Max. Ohms
66
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ACDC-3400 IND
Zoro #
G0942916
UPC #
095969492683
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
1 yr
Battery Size
9V

Details

Item
Digital Clamp Meter
Digital/Analog
Digital
Max. AC Amps
1,000
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
1,000 V
Max. Ohms
66
Jaw Capacity
2.0 in (51 mm)
Safety Rating
CAT III 1000V, CAT IV 600V
Display
Backlit
Jaw Opening
2 in
Max. DC Amps
1,000
Max. AC Volts
750 V
Calibration Frequency
50 to 400 Hz
Counts
6,600
Capacitance
6.6
Bar Graph
Yes
Auto Power Off
Yes
Battery Type
9V
Peak Hold
Yes
Audible Continuity
Yes
Auto Ranging
Yes
Operating Temp.
32 Degrees to 122 Degrees F
Special Features
Backlight Makes it Easy to Read Even in Dark Conditions, Relative Zero Displays the Difference Between the Actual Reading and A Stored Reference Value and May be used with Any Function or Range
Includes
ACDC-3400 IND, Deluxe Carrying Case, Test Leads
AC Response
TRMS
Data Hold
Yes
AC Current Accuracy
+/-2.0% + 5 Digits
Frequency Counter
50 kHz to 1 kHz
Data Logging
Yes
Diode Test
Yes
Intrinsically Safe
No
Minimum Capacitance Measurement
6.6 nF
Minimum AC Current Measurement
66 A
Maximum DC Current Measurement
1,000 A
Minimum DC Current Measurement
660 A
Current Leakage Testing
No
Maximum Capacitance Measurement
6.6 mF
Thermal Imaging
No
Basic AC Voltage Accuracy
+/- (1.5% rdg + 8 dgts)
Parameters Measured
AC Current, AC Voltage, DC Current, DC Voltage, Frequency
Instrument Counts
6,600
Maximum DC Voltage Measurement
1,000 V
Minimum AC Voltage Measurement
660 V
Dustproof
No
Maximum Resistance Measurement
66 megaohm
Batteries Included
Yes
Frequency Measurement Accuracy
+/- (0.1% rdg + 5 dgts)
Minimum DC Voltage Measurement
660 V
Waterproof
No
Bluetooth Compatible
No
Basic AC Current Accuracy
+/- (1.5% rdg + 8 dgts)
AC Response Calculation
TRMS
Maximum AC Voltage Measurement
750 V
Basic DC Voltage Accuracy
+/- (0.5% rdg + 2 dgts)
Minimum Frequency Measurement
66 Hz
Calibration Certificate Included
No
Battery Access
Yes
Jaw Style
Clamp-Jaw
Removable Screen
No
Bar Graph Included
Yes
Basic DC Current Accuracy
+/- (0.5% rdg + 2 dgts)
Display Type
Backlit
Maximum Frequency Measurement
1 MHz
Maximum AC Current Measurement
1,000 A

Description

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT III 1000V, CAT IV 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 1,000 A, Maximum AC Voltage Measurement 750 V, Maximum DC Current Measurement 1,000 A, Maximum DC Voltage Measurement 1,000 V, Current Leakage Testing No, Parameters Measured AC Current, AC Voltage, DC Current, DC Voltage, Frequency, Intrinsically Safe No, Dustproof No, Waterproof No, Data Logging Yes, Thermal Imaging No, Removable Screen No
