  5. Digital Clamp Meter, LCD, 400 A, 1.2 in (30 mm) Jaw Capacity, CAT III 600V Safety Rating

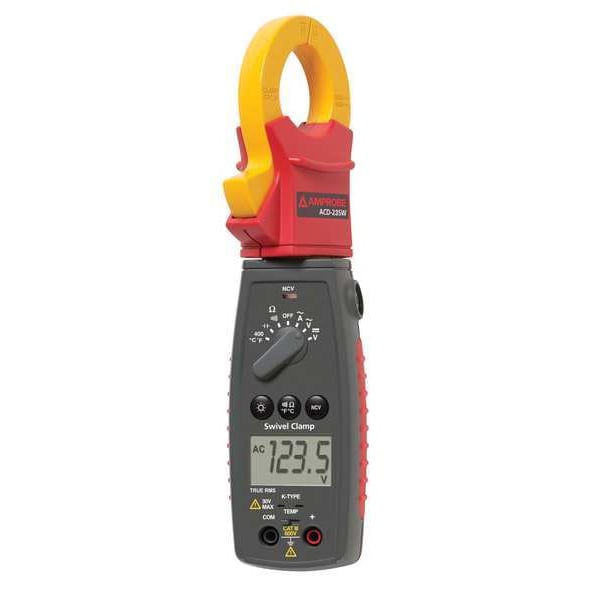

Amprobe Digital Clamp Meter, LCD, 400 A, 1.2 in (30 mm) Jaw Capacity, CAT III 600V Safety Rating ACD-23SW - main

Digital Clamp Meter, LCD, 400 A, 1.2 in (30 mm) Jaw Capacity, CAT III 600V Safety Rating

  • Mfr # ACD-23SW

  • Zoro # G3722092

product price:  $252.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Max. AC Amps
400
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
600 V
Max. Ohms
40
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
ACD-23SW
Zoro #
G3722092
UPC #
095969563529
Country of Origin
Taiwan, Province of China

Dimensions

Max. Conductor Size
1.18 in (30.0mm)
Manufacturers Warranty Length
1 yr
Battery Size
AAA
Maximum Conductor Size
1.18 in (29.9mm)

Details

Item
Digital Clamp Meter
Digital/Analog
Digital
Max. AC Amps
400
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
600 V
Max. Ohms
40
Jaw Capacity
1.2 in (30 mm)
Temp. Range
-30 Degrees to 400 Degrees F
Safety Rating
CAT III 600V
Display
LCD
Jaw Opening
1.2 in
Max. AC Volts
600 V
Calibration Frequency
50 to 60 Hz
Auto Ranging
Yes
Counts
4,000
Includes
Carrying Case, Manual, Test Leads
Thermometer Type
Type K Thermocouple
Special Features
Swivel Head 180 Degrees Rotating Head
Battery Type
AAA
Auto Power Off
Yes
Capacitance
4,000 uF
Operating Temp.
32 Degrees to 122 Degrees F
Data Hold
Yes
AC Current Accuracy
+/-2.0% + 10 Digits
Audible Continuity
Yes
AC Response
TRMS
Data Logging
Yes
Non-Contact Voltage Detector
Yes
Maximum AC Current Measurement
400 A
Resistance Measurement Resolution
0.1 ohm
Current Leakage Testing
No
Display Type
LCD
Bluetooth Compatible
No
AC Current Measurement Resolution
0.01 A
Basic AC Current Accuracy
+/-2.00% of Reading +10 Digits
DC Voltage Measurement Resolution
0.1 mV
AC Voltage Measurement Resolution
1 mV
Jaw Style
Clamp-Jaw
Maximum AC Voltage Measurement
600 V
Batteries Included
Yes
Minimum Operating Temperature
32 Degrees F
Basic AC Voltage Accuracy
+/-1.20% of Reading + 8 Digits
Basic DC Voltage Accuracy
+/-0.50% of Reading +2 Digits
Maximum Capacitance Measurement
4,000 uF
Waterproof
No
Thermal Imaging
No
Maximum Operating Temperature
122 Degrees F
Resistance Measurement Accuracy
+/- (1.0% rdg + 4 dgts)
Capacitance Measurement Accuracy
+/-3.00% of Reading + 15 Digits
Calibration Certificate Included
No
Instrument Counts
4,000
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Voltage, Resistance, Temperature (K)
Removable Screen
No
Maximum Resistance Measurement
40 megaohm
Dustproof
No
AC Response Calculation
TRMS
Intrinsically Safe
No
Maximum DC Voltage Measurement
600 V

Description

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT III 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 400 A, Maximum AC Voltage Measurement 600 V, Maximum DC Current Measurement Not Applicable, Maximum DC Voltage Measurement 600 V, Current Leakage Testing No, Parameters Measured AC Current, AC Voltage, Capacitance, DC Voltage, Resistance, Temperature, Intrinsically Safe No, Dustproof No, Waterproof No, Data Logging Yes, Thermal Imaging No, Removable Screen No
