Shop TRIPLETT

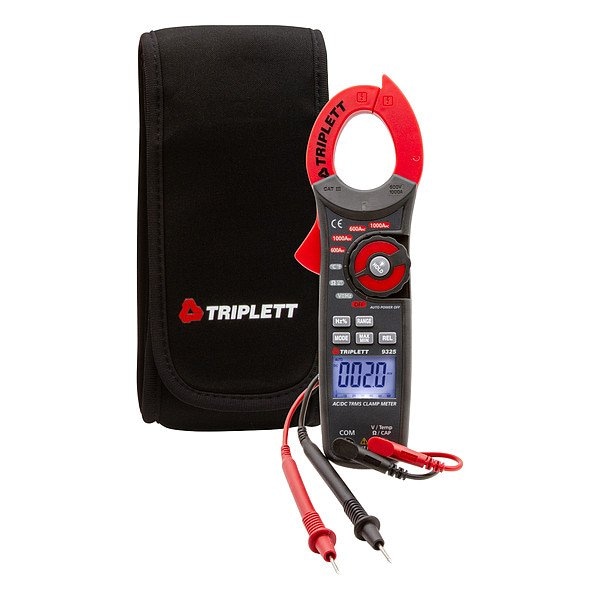

DigitalClampMeter, TRMS, 1000A, 600VAC

  • Mfr # 9325-NIST

  • Zoro # G322439943

product price:
$
247.99
/ea
Free Shipping & Returns

Key Features

Batteries Included
Yes
Audible Continuity
Yes
Non-Contact Voltage Detector
Yes
Maximum AC Voltage Measurement
600 V
Minimum DC Current Measurement
600 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9325-NIST
Zoro #
G322439943
UPC #
614395002787
Country of Origin
China

Dimensions

Maximum Conductor Size
500MCM
Overall Width
2.75 in
Manufacturers Warranty Length
3 yr
True RMS Bandwidth
400 Hz
Overall Height
9.5 in
Battery Size
9V

Details

Batteries Included
Yes
Item
Digital Clamp Meter
Audible Continuity
Yes
Non-Contact Voltage Detector
Yes
Maximum AC Voltage Measurement
600 V
Minimum DC Current Measurement
600 A
Resistance Measurement Accuracy
+/-3.5%
Maximum DC Current Measurement
1,000 A
Bar Graph Included
No
Temperature Types Measured
Temperature K
Software Included
No
Jaw Opening
1.5 in
Parameters Measured
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Duty Cycle, Resistance, Temperature
Peak Hold
No
Instrument Counts
6,000
Minimum AC Current Measurement
600 A
Minimum Storage Temperature
-4 Degrees F
Includes
Battery, Carrying Case, Test Leads, Type K Temperature Probe
Maximum Frequency Measurement
10 kHz
Current Units
A
Thermometer Type
Type K Thermocouple
Minimum DC Voltage Measurement
600 mV
Calibration Certificate Included
NIST Traceable
Basic AC Current Accuracy
+/-2.8%
Data Hold
Yes
Jaw Style
Clamp
Auto Ranging
Yes
Frequency Measurement Accuracy
+/-1.5%
Minimum Capacitance Measurement
40 nF
Removable Screen
No
Auto Power Off
Yes
Thermal Imaging
No
CAT Safety Rating
CAT III 600V
IP Rating
Not Rated
Includes Auto Sensing
No Auto Sensing Included
Current Leakage Testing
No
Diode Test
Yes
Memory
Min/Max
Basic AC Voltage Accuracy
1.8%
Minimum Operating Temperature
-4 Degrees F
Voltage Units
mV, V
Special Features
Ergonomic Design, The Rubberized Overmolded Housing, The user-Friendly Auto Power Off
AC Response Calculation
TRMS
Inrush Current Measurable
No
Basic DC Current Accuracy
+/-3.0%
Maximum AC Current Measurement
1,000 A
Maximum Storage Temperature
140 Degrees F
Minimum Resistance Measurement
600 ohm
Time of Day Clock
No
Minimum AC Voltage Measurement
600 mV
Capacitance Measurement Accuracy
+/-5%
Maximum DC Voltage Measurement
600 V
Multiple On-Screen Displays
No
Basic DC Voltage Accuracy
+/-1.5%
Display Type
Backlit LCD
Standards
CE
Battery Voltage
9 V
Maximum Capacitance Measurement
4,000 uF
Battery Access
Yes
Maximum Resistance Measurement
60 megaohm

Description

Digital Clamp Meter, Audible Continuity Yes, AC Response Calculation TRMS, Maximum AC Current Measurement 1,000 A, Maximum AC Voltage Measurement 600 V, Maximum DC Current Measurement 1,000 A, Maximum DC Voltage Measurement 600 V, Current Leakage Testing No, IP Rating Not Rated, Parameters Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Duty Cycle, Resistance, Temperature, Intrinsically Safe Not Applicable, Data Logging Not Applicable, Thermal Imaging No
