  5. Digital Clamp Meter, LCD, 600 A, 1.2 in (30 mm) Jaw Capacity, CAT III 600V Safety Rating

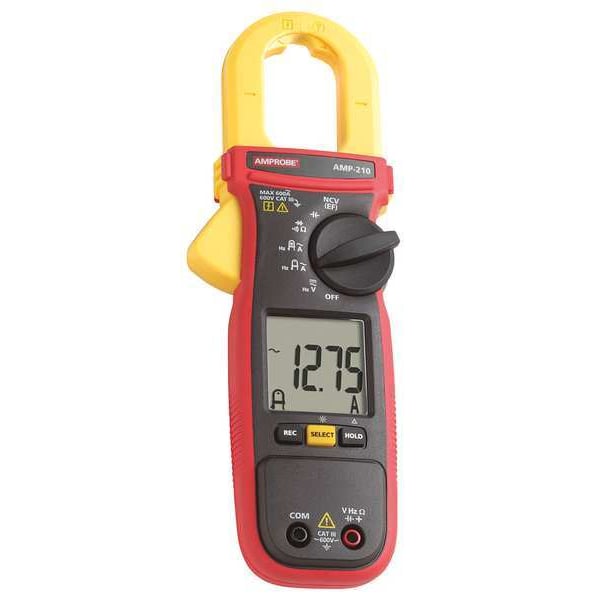

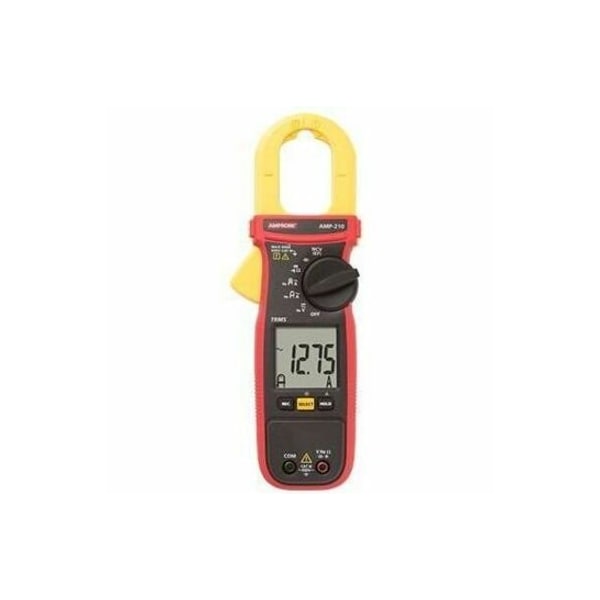

Amprobe Digital Clamp Meter, LCD, 600 A, 1.2 in (30 mm) Jaw Capacity, CAT III 600V Safety Rating AMP-210 - main

Digital Clamp Meter, LCD, 600 A, 1.2 in (30 mm) Jaw Capacity, CAT III 600V Safety Rating

  • Mfr # AMP-210

  • Zoro # G9486434

product price:  $221.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Max. AC Amps
600
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
600 V
Max. Ohms
60,000
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
AMP-210
Zoro #
G9486434
UPC #
095969770859
Country of Origin
Taiwan, Province of China

Dimensions

Max. Conductor Size
1.18 in (30.0mm)
Manufacturers Warranty Length
1 yr
Maximum Conductor Size
1.18 in (29.9mm)
Battery Size
AAA

Details

Item
Digital Clamp Meter
Digital/Analog
Digital
Max. AC Amps
600
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
600 V
Max. Ohms
60,000
Jaw Capacity
1.2 in (30 mm)
Safety Rating
CAT III 600V
Display
LCD
Jaw Opening
1.2 in
Max. AC Volts
600 V
Auto Power Off
Yes
AC Current Accuracy
+/-2.0% + 5 Digits
AC Response
TRMS
Bar Graph
No
Includes
Carrying Case, Manual, Test Leads with Alligator Clips
Auto Ranging
Yes
Data Hold
Yes
Operating Temp.
32 Degrees to 104 Degrees F
Frequency Counter
5 Hz to 999.9 Hz
Special Features
Amp Tip Function
Capacitance
2,500 uF
Non-Contact Voltage Detector
Yes
Diode Test
Yes
Calibration Certificate
Not Included
Counts
6,000
Audible Continuity
Yes
Inrush
No
Standards
CE, cULus
Battery Type
AAA
Peak Hold
No
Data Logging
Yes
AC Response Calculation
TRMS
Bluetooth Compatible
No
Display Type
LCD
Intrinsically Safe
No
Maximum DC Voltage Measurement
600 V
Basic DC Voltage Accuracy
+/-1.0% + 5LSD
Basic AC Current Accuracy
+/-1.8% + 5LSD (50 to 60 Hz) +/-2.0% + 5LSD (100 to 400 Hz)
Jaw Style
Clamp-Jaw
Frequency Measurement Accuracy
+/-1.00% + 5 LSD (600 V Range); +/-2.00% + 4 LSD (600 A Range)
Minimum Operating Temperature
32 Degrees F
Basic AC Voltage Accuracy
+/-1.0% + 5LSD (50 to 60 Hz)
Instrument Counts
6,000
Current Leakage Testing
No
Capacitance Measurement Accuracy
+/-2.0% + 4LSD
Maximum Operating Temperature
104 Degrees F
Resistance Measurement Accuracy
+/-1.0% + 5LSD
Calibration Certificate Included
No
Maximum AC Current Measurement
600 A
Thermal Imaging
No
Bar Graph Included
No
Dustproof
No
Removable Screen
No
Maximum Capacitance Measurement
2,500 uF
Maximum AC Voltage Measurement
600 V
Maximum Resistance Measurement
60,000 ohm
Waterproof
No
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Voltage, Frequency, Resistance
Inrush Current Measurable
No

Description

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT III 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 600 A, Maximum AC Voltage Measurement 600 V, Maximum DC Current Measurement Not Applicable, Maximum DC Voltage Measurement 600 V, Current Leakage Testing No, Parameters Measured AC Current, AC Voltage, Capacitance, DC Voltage, Frequency, Resistance, Intrinsically Safe No, Dustproof No, Waterproof No, Data Logging Yes, Thermal Imaging No, Removable Screen No
