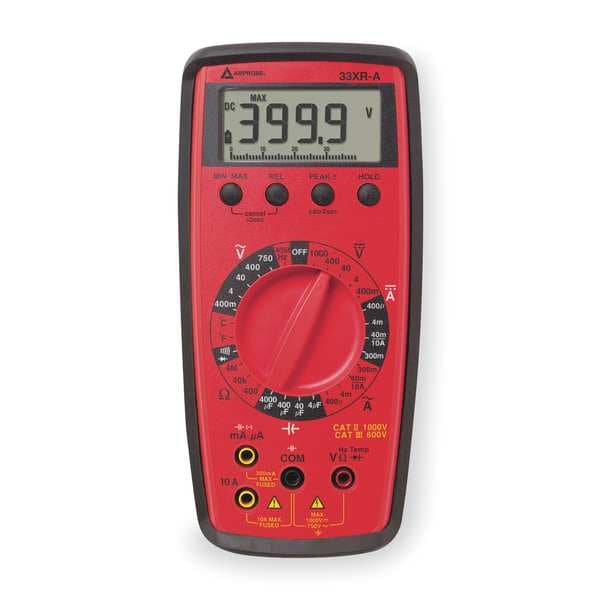

Amprobe Digital Multimeter, 1,000 V Max DC, 400 V Max AC, Average, 3,999 Instrument Counts, LCD 33XR-A - main

Digital Multimeter, 1,000 V Max DC, 400 V Max AC, Average, 3,999 Instrument Counts, LCD

  • Mfr # 33XR-A

  • Zoro # G2694386

product price: $233.99
/ea
Free Shipping & Returns

Key Features

Display Type
LCD
Data Hold
Yes
Instrument Counts
3,999
Includes
9V Battery (Installed), Magne-Grip(TM) Holster with Magnetic Hanging Strap, Spare Fuse, Temperature Adapter, Test Leads with Threaded Alligator Clips, Type K Thermocouple Probe
Standards
cCSAus, OSHA, UL
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
33XR-A
Zoro #
G2694386
UPC #
095969365376
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
1 yr
Overall Width
3.6 in
Overall Height
7.7 in
Battery Size
9V
Depth
2.4 in

Details

Item
Digital Multimeter
Display Type
LCD
Data Hold
Yes
Instrument Counts
3,999
Includes
9V Battery (Installed), Magne-Grip(TM) Holster with Magnetic Hanging Strap, Spare Fuse, Temperature Adapter, Test Leads with Threaded Alligator Clips, Type K Thermocouple Probe
Standards
cCSAus, OSHA, UL
Auto Power Off
Yes
Data Logging
No
Audible Continuity
Yes
Diode Test
Yes
Calibration Certificate Included
No
Max. DC Amps
10
Temp. Range
-4 Degrees to 1832 Degrees F
Max. Ohms
4 megohm
Series
AMPROBE (R) 33XR-A
AC Response
TRMS
Instrument Safety Rating
CAT II 1000V, CAT III 600V
Basic DC Accuracy
+/-0.70% of Reading + 1 Digit
Multimeter Style
Full Size - Basic Features
Capacitance Range
4000 uF
Instrument Frequency Counter Range
1 Hz to 40 Mhz
Peak Hold
Yes
Display
LCD
Max. AC Amps
10
Duty Cycle
Yes
Auto Ranging
Yes
Intrinsically Safe
No
Batteries Included
Yes
Basic AC Current Accuracy
+/- (1.5 % rdg + 4 dgts)
Maximum Temperature Measurement
1,832 Degrees F
Minimum DC Voltage Measurement
400 V
Frequency Measurement Accuracy
+/- (0.1 % rdg + 3 dgts)
Bluetooth Compatible
No
Battery Chemistry
Alkaline
Minimum Operating Temperature
32 Degrees F
Current Leakage Testing
No
Temperature Measurement Accuracy
-20 Degrees C to 10 Degrees C +/- (2.0 % rdg + 4 Degrees C ) 10 Degrees C to 200 Degrees C +/- (1.0 % rdg + 3 Degrees C ) 200 Degrees C to 1000 Degrees C +/- (3.0 % rdg + 2 Degrees C ) -4 Degrees F to 50 Degrees F +/- (2.0 % rdg + 8 Degrees F) 50 Degrees F to 400 Degrees F +/- (1.0 % rdg + 6 Degrees F) 400 Degrees F to 1832 Degrees F +/- (3.0 % rdg + 4 Degrees F)
Basic DC Current Accuracy
+/- (1.0 % rdg + 1 dgt)
Maximum Operating Temperature
113 Degrees F
Thermal Imaging
No
AC Response Calculation
Average
Removable Screen
No
Maximum AC Voltage Measurement
1,000 V
Capacitance Measurement Accuracy
+/- (5.0 % rdg + 5 dgts)
Basic AC Voltage Accuracy
+/- (1.5 % rdg + 4 dgts)
Maximum Capacitance Measurement
4,000 uF
Frequency Measurement Resolution
4 kHz
Fuse Access
Yes
Minimum DC Current Measurement
400 uA
Minimum/Maximum Memory
Yes
Bar Graph Included
Yes
DC Current Measurement Resolution
400 uA
AC Current Measurement Resolution
400 uA
Battery Access
Yes
AC Voltage Measurement Resolution
400 V
Temperature Measurement Resolution
0 Degrees C
Capacitance Measurement Resolution
4 uF
Computer Interface Connection Type
None
Minimum Capacitance Measurement
4 uF
Maximum Storage Temperature
140 Degrees F
Minimum AC Voltage Measurement
400 V
DC Voltage Measurement Resolution
400 V
Maximum Frequency Measurement
1 MHz
Minimum Resistance Measurement
400 ohm
Maximum DC Voltage Measurement
1,000 V
Weight
0.9 lb
Maximum AC Current Measurement
10 A
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature (K)
Resistance Measurement Resolution
400 ohm
Minimum AC Current Measurement
400 uA
Battery Voltage
9V
Minimum Frequency Measurement
4 kHz
Dustproof
No
Resistance Measurement Accuracy
+/-1.2%
Waterproof
No
Minimum Storage Temperature
-4 Degrees F
Minimum Temperature Measurement
-4 Degrees F
Maximum DC Current Measurement
10 A
Basic DC Voltage Accuracy
+/-0.70% + 1 Digit
Maximum Resistance Measurement
4 megaohm

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/- (1.5 Percent rdg + 4 dgts), Basic DC Voltage Accuracy +/-0.70 Percent + 1 Digit, Data Hold Yes, Basic DC Current Accuracy +/- (1.0 Percent rdg + 1 dgt), Instrument Safety Rating CAT II 1000V, CAT III 600V, Maximum AC Voltage Measurement 1,000 V, Maximum DC Voltage Measurement 1,000 V, Instrument Counts 3,999
