Shop AMPROBE

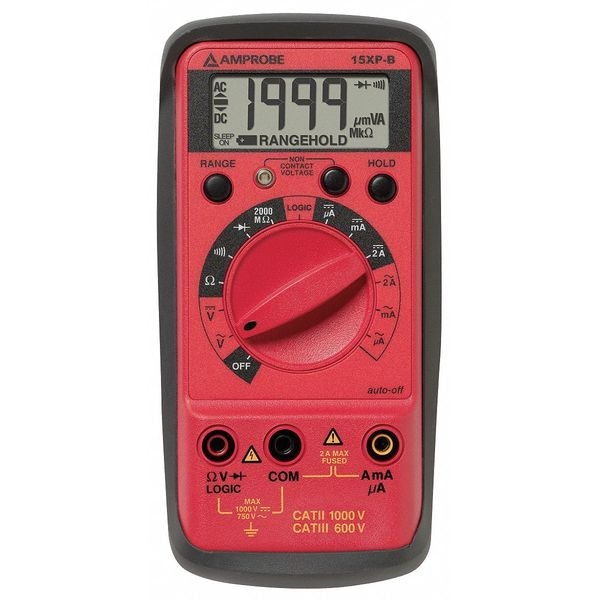

Digital Multimeter, 600 V Max DC, 200 V Max AC, Average, 2,000 Instrument Counts, Backlit LCD

  • Mfr # 15XP-B

  • Zoro # G3486122

product price:
$
149.99
/ea
Free Shipping & Returns

Key Features

Display Type
Backlit LCD
Data Hold
Yes
Instrument Counts
2,000
Includes

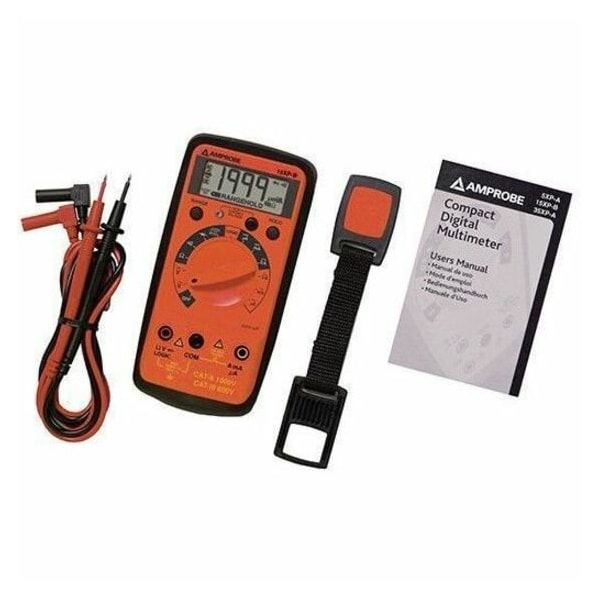

Battery, Fuse 2 A/1000 V (P/N FP200), Holster with Magnetic Hanging Strap, Test Leads (TL245A)
Standards
CE, N10140
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
15XP-B
Zoro #
G3486122
UPC #
095969525770
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
1 yr
Overall Height
6.1 in
Depth
1.26 in
Battery Size
9V
Overall Width
2.83 in

Details

Item
Digital Multimeter
Display Type
Backlit LCD
Data Hold
Yes
Instrument Counts
2,000
Includes
Battery, Fuse 2 A/1000 V (P/N FP200), Holster with Magnetic Hanging Strap, Test Leads (TL245A)
Standards
CE, N10140
Auto Power Off
Yes
Data Logging
No
Audible Continuity
Yes
Diode Test
Yes
Basic DC Accuracy
+/-0.50% of Reading + 1 Digit
AC Response
Average
Instrument Safety Rating
CAT III 600V
Multimeter Style
Full Size - Basic Features
Temp. Range
-4 Degrees to 140 Degrees F
Display
Backlit LCD
Series
AMPROBE (R) 15XP-B
Max. DC Amps
2 A
Auto Ranging
Yes
Calibration Certificate Included
No Certification Included
Max. Ohms
2000 megohm
Max. AC Amps
2 A
Intrinsically Safe
No
Minimum Operating Temperature
32 Degrees F
Battery Voltage
9 V
Maximum DC Voltage Measurement
600 V
Basic DC Voltage Accuracy
+/-0.50% + 1 Digit
Maximum AC Current Measurement
2 A
Maximum Operating Temperature
122 Degrees F
Minimum Temperature Measurement
-4 Degrees F
Basic AC Voltage Accuracy
+/- (1.5 % rdg + 5 dgts)
Parameters Measured
AC Current, AC Voltage, DC Current, DC Voltage, Resistance
Thermal Imaging
No
Battery Chemistry
Alkaline
Minimum DC Current Measurement
200 uA
Dustproof
No
Weight
7.4 oz
Waterproof
No
Minimum Storage Temperature
-4 Degrees F
AC Response Calculation
Average
Minimum DC Voltage Measurement
200 V
Basic AC Current Accuracy
+/- (1.5 % rdg + 5 dgts)
Resistance Measurement Accuracy
+/-5%
Maximum Resistance Measurement
2,000 megaohm
Current Leakage Testing
No
Minimum Resistance Measurement
200 ohm
Maximum AC Voltage Measurement
600 V
Minimum AC Voltage Measurement
200 V
Bluetooth Compatible
No
Minimum AC Current Measurement
200 uA
Maximum Storage Temperature
140 Degrees F
Maximum Temperature Measurement
140 Degrees F
Resistance Measurement Resolution
200 megaohm
Battery Access
Yes
Basic DC Current Accuracy
+/- (1.0 % rdg + 2 dgt)
Removable Screen
No
Computer Interface Connection Type
None
Batteries Included
Yes
Maximum DC Current Measurement
2 A
Includes Auto Sensing
No Auto Sensing Included
Special Features
600 V AC/600 V DC-Highest Voltage Rating in this Size of Meter, Autoranging Display for Faster Measurements, Data Hold Freezes Display to "Hold" Measurement Reading, Designed for Electronics Engineers, Technicians and Field Service, Diode Test for Component Level Troubleshooting, Integrated Tilt Stand for Easy Bench Use, Special 2000 megaohm Measurement Range, TTL Logic Test for Digital Circuits
IP Rating
Not Rated
Current Units
A, mA
CAT Safety Rating
CAT III 600V
Temperature Types Measured
Temperature Degrees C, Temperature Degrees F

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/- (1.5 Percent rdg + 5 dgts), Basic DC Voltage Accuracy +/-0.50 Percent + 1 Digit, Data Hold Yes, Basic DC Current Accuracy +/- (1.0 Percent rdg + 2 dgt), Instrument Safety Rating CAT III 600V, Maximum AC Voltage Measurement 600 V, Maximum DC Voltage Measurement 600 V, Instrument Counts 2,000
