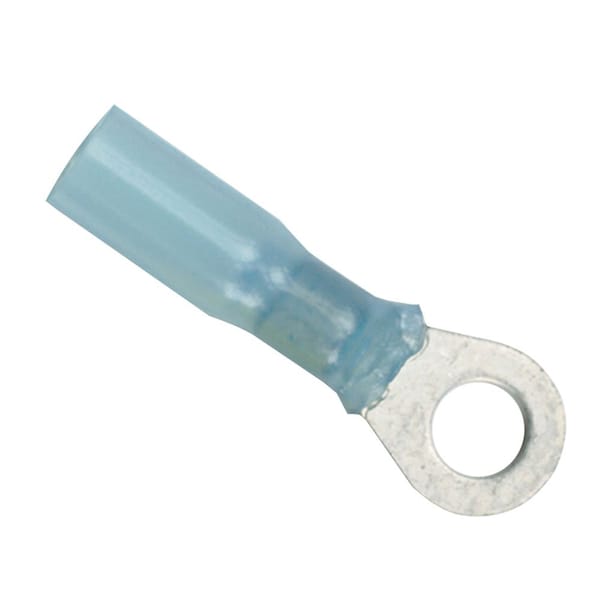

16-14 Gauge - No 8 Heat Shrink Ring Terminal - 3-Pack
Mfr # 311203
Zoro # G802942079
product price:Â
$
3.15
/ea
Sold in multiples of 3 for $9.45
Key Features
Insulation Coverage
Partial Coverage
Minimum Operating Temperature
40 Degrees C
Stud Size
#8
Maximum Operating Temperature
110 Degrees C
Standards
UL 486A and CSA Listed
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 311203
- Zoro #
- G802942079
- UPC #
- 091887313024
- Country of Origin
- United States
Dimensions
- Stud Size
- #8
- Maximum Wire Size
- 14 AWG
- Minimum Wire Size
- 16 AWG
Details
- Item
- Ring Terminal
- Insulation Coverage
- Partial Coverage
- Minimum Operating Temperature
- 40 Degrees C
- Maximum Operating Temperature
- 110 Degrees C
- Standards
- UL 486A and CSA Listed
- Contact Material
- Copper
- Insulation Color
- Blue
- Insulation Type
- Cross-Linked Polyolefin
- Terminal Shape
- Standard Ring Tongue
Description
Gauge Size: 16-14
Screw Size: #8
Quantity: 3
Product Features:
- Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
- Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
- Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.
- UL Listed and CSA Recognized
- Highest shrink ratio - shrinks to 1/3 original size.
- Shrinks at 257 deg. F/125 deg. C.
- Operating temperature range 40 deg. C to 110 deg. C.
- ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
- Shrinks to form a water tight seal and the ultimate vibration and strain relief.
- Tinned for corrosion resistance.
- Pure copper for maximum current flow.
- Brazed seam for maximum strength.
- Wire Range: 16-14
- mm: 1-2
