  11. Smart UPS, 1000VA, Line Interactive, Out: 120V AC In: 120V AC

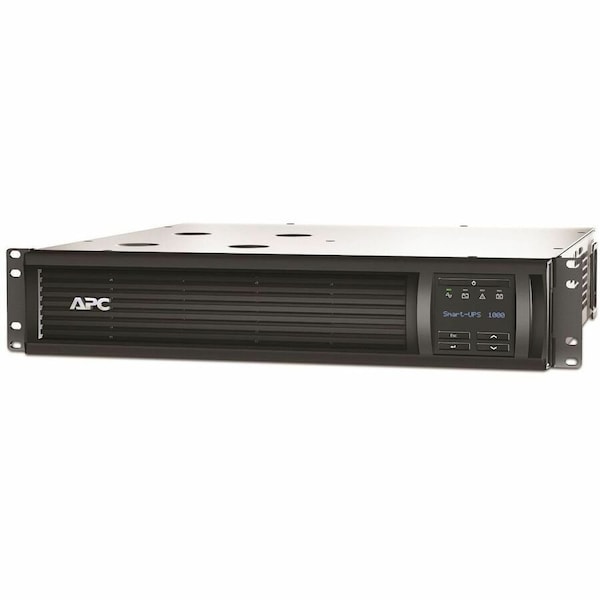

Apc Smart UPS, 1000VA, Line Interactive, Out: 120V AC In: 120V AC SMT1000RM2UC - main

Smart UPS, 1000VA, Line Interactive, Out: 120V AC In: 120V AC

  • Mfr # SMT1000RM2UC

  • Zoro # G5105803

product price: $801.99
/ea
Free Shipping & Returns

Key Features

VA Rating - UPS Systems
1.0 kVA
UPS Type
Line Interactive
Power Rating
1000VA
Mounting
Rack
Wattage
700 W
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SMT1000RM2UC
Zoro #
G5105803
UPC #
731304284567
Country of Origin
Philippines

Dimensions

Height
4 in
Cord Length
8 ft
Depth
18 in
Width
18 in
Overall Height
8.6 cm
Overall Width
43.2 cm
Rack Height
2
Power Cord Length
8 ft
Overall Depth
47.7 cm

Details

VA Rating - UPS Systems
1.0 kVA
Item
Smart UPS
UPS Type
Line Interactive
Power Rating
1000VA
Mounting
Rack
Wattage
700 W
Input Voltage
120V AC
Output Voltage
120V AC
Backup Time (Half/Full Load)
31.3 min/8.7 min
Outlet Type
UPS/Surge
Medical Grade
No
Number of Outlets
6
NEMA Receptacle Configuration
(6) 5-15R
Standards
cULus, ENERGY STAR V2.0 (USA), RoHS
Includes
Documentation CD, Rack Mounting Support Rails
Automatic Volts Regulation
Yes
Transfer Time
4 to 8 msec
Phase
Single
Fax/Modem Line Protection
No
Input Current
12 A
Hz
50/60 Hz ( +/-3 Hz)
Display Type
LCD
NEMA Plug Configuration
5-15P
Capacity - Batteries
1000 VA/700 W
Battery Type
Lead Acid
Housing Color
Black
Housing Material
Steel
Output Power Capacity, VA
1000
Output Connections
6
Typical Battery Recharge Time
3 Hour
Load Capacity
1000 VA/700 W
Package Contents
Smart-UPS SMT1000RM2UC 1000VA Rack-mountable UPS , Documentation CD, Installation guide, Rack mounting support rails, Smart UPS signalling RS-232 cable, USB cable
Number of Battery & Surge Outlets
6
Form Factor
Rack-mountable
Battery Chemistry
Valve Regulated Lead Acid
Input Voltage Range
82 V AC - 144 V AC, 75 V AC - 154 V AC
Application/Usage
Switch, Network Hub, Network Device, POS Terminal, Server, Router
Surge Energy Rating
120
For Use with
Switch, Server, Router, POS Terminal, Network Hub, Network Device
Input Connection Type
2.4
Mount Position
Front
Interface Port(s)
RJ-45 Serial,SmartSlot,USB
Typical recharge time
3
Nominal Output Voltage
120V
Waveform type
Sine wave
Hot Swappable
Yes
Input Current - Maximum
12 A
Operating Temperature - Minimum
32 Degrees F
Output Ports Included
RS-232, USB
Surge Suppression Rating
680 J
Power Rating - Apparent
1 kVA
Operating Temperature - Maximum
104 Degrees F
External Battery Compatible
Not External Battery Pack Compatible
Transfer Time - Minimum
6 msec
Power Rating - Real
700 W
Run Time - Full Load
8.48 min
Battery Life - Minimum
4 yr
Battery Recharge Time
3 hr
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
Frequency
50/60 Hz
Replacement Battery Part Number
APCRBC157
Audible Alarm Conditions
Low Battery
Manufacturer Warranty
3 yr
Plug Configuration
5-15P
Number of Outlets - UPS
6
Includes Battery
Battery Included
Transfer Time - Maximum
10 msec
Receptacle Configuration
5-15R

Description

UPS System, Line Interactive, Power Rating 1 kVA, Wattage 700 W, Input Voltage 120V AC, Output Voltage 120V AC, Backup Time (Half/Full Load) 31.3 min/8.7 min, Mounting Rack, Outlet Type UPS/Surge, Number of Outlets 6, Medical Grade Not Medical Grade Approved, NEMA Receptacle Configuration (6) 5-15R, NEMA Plug Configuration 5-15P, Automatic Volts Regulation Yes, Fax/Modem Line Protection No, Transfer Time 4 to 8 msec, Width 17 in, Depth 18 in, Height 4 in, Cord Length 8 ft, Display Type LCD
