  11. UPS System, 5000VA, Online/Double Conversion, Out: 120/208/240V AC In: 208/240V AC

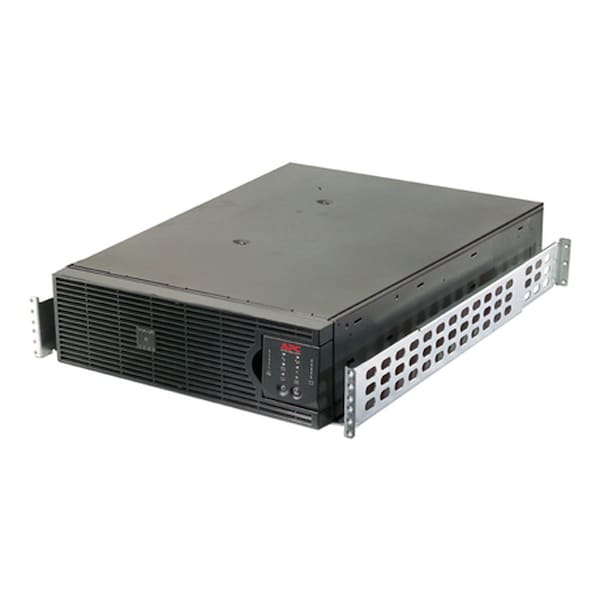

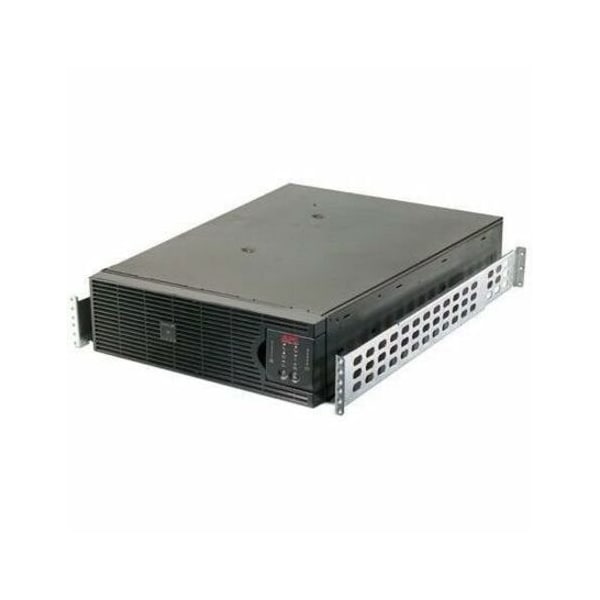

Apc UPS System, 5000VA, Online/Double Conversion, Out: 120/208/240V AC In: 208/240V AC SURTD5000RMXLP3U - main

UPS System, 5000VA, Online/Double Conversion, Out: 120/208/240V AC In: 208/240V AC

  • Mfr # SURTD5000RMXLP3U

  • Zoro # G5366081

product price: $7,169.99
/ea
Free Shipping & Returns

Key Features

VA Rating - UPS Systems
5.0 kVA
UPS Type
Online/Double Conversion
Power Rating
5000VA
Mounting
Rack/Tower
Wattage
4 kW
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SURTD5000RMXLP3U
Zoro #
G5366081
UPC #
731304258810
Country of Origin
Philippines

Dimensions

Cord Length
10 ft
Width
26 in
Depth
26 in
Height
5 in
Overall Height
13 cm
Overall Width
43.2 cm
Rack Height
3U
Overall Depth
66 cm
Power Cord Length
10 ft

Details

Item
UPS System
VA Rating - UPS Systems
5.0 kVA
UPS Type
Online/Double Conversion
Power Rating
5000VA
Mounting
Rack/Tower
Wattage
4 kW
Input Voltage
208/240V AC
Output Voltage
120/208/240V AC
Backup Time (Half/Full Load)
14.1 min/4.8 min
Outlet Type
UPS/Surge
Medical Grade
No
Number of Outlets
6
Fax/Modem Line Protection
No
NEMA Plug Configuration
L14-30P
Phase
Single
Standards
CSA, RoHS
Display Type
No Display
Hz
40 to 70 Hz
Transfer Time
0 msec
NEMA Receptacle Configuration
(1) L14-30R; (1) L6-30R; (4) 5-20R
Input Current
24 A
Includes
Rack Mounting Support Rails, Removable Support Feet, Smart Ups Signalling RS-232 Cable
Automatic Volts Regulation
No
Housing Color
Black
Battery Type
Sealed Lead Acid (SLA)
Capacity - Batteries
5000 VA/4000 W
Housing Material
Steel
Ambient Air Temperature For Operation
0-40°C
Usb Compatible
No
Ambient Air Temperature For Storage
-15-45°C
Harmonic Distortion
Less than 2%
Efficiency At Full Load
90 % full load), 85...136 V adjustable || 156...236 V
Online Thermal Dissipation
1589 Btu/h
Acoustic Level
55 dBA
Additional Information
Configurable for 208 or 240 nominal output voltage
Product Certifications
CSA
Ip Degree Of Protection
IP20
Bypass Type
Internal Bypass (Automatic and Manual)
Other Output Voltages
240 V
Operating Altitude
0...10000 ft
Input Frequency
50/60 Hz +/- 5 Hz auto-sensing
Storage Altitude
0-50000 ft
Number Of Rack Unit
3U
Other Input Voltages
240 V
Rated Power In Va
5000 VA
Free Slots
0
Mounting Location
front
Relative Humidity
0-95 % non-condensing
Kw Rating
4000 W
Battery Life
3-5 year(s)
Presentation
High density, double-conversion on-line power protection with scalable runtime.
Number Of Cables
1
Provided Equipment
CD with software || Rack Mounting support rails || Removable support feet || Smart UPS signalling RS-232 cable || User Manual
Alarm
alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Crest Factor
0.125694444444444
Bypass Switch
Automatic, Internal, Manual
Battery Chemistry
Valve Regulated Lead Acid
Load Capacity
5000 VA/4000 W
Waveform Type
Sine Wave
Battery Characteristics
Maintenance-free, Sealed, Spill-proof
Number of Battery & Surge Outlets
6
Package Contents
Smart-UPS RT 5000VA Tower/Rack-mountable UPS , CD with software, Rack mounting support rails, Removable support feet, Smart UPS signalling RS-232 cable, User manual
Typical Battery Recharge Time
2.50 Hour
Serial Port
Yes
Surge Energy Rating
365 J
Product Series
RT
Hot Swappable
Yes
Emergency Power OFF
Yes
Form Factor
Rack-mountable
Frequency
50/60 Hz
Surge Suppression Rating
365 J
Includes Battery
Battery Included
Manufacturer Warranty
2 yr
Operating Temperature - Maximum
104 Degrees F
Battery Life - Minimum
3 yr
Automatic Voltage Regulation
No Automatic Voltage Regulation
Run Time - Full Load
4.83 min
Transfer Time - Minimum
0 msec
Number of Outlets - UPS
6
Replacement Battery Part Number
APCRBC140
Input Current - Maximum
24 A
Power Rating - Real
4 kW
Operating Temperature - Minimum
32 Degrees F
Receptacle Configuration
5-20R, L14-30R, L6-30R
Battery Recharge Time
2.5 hr
Plug Configuration
L14-30P
Audible Alarm Conditions
Overload
Power Rating - Apparent
5 kVA
External Battery Compatible
External Battery Pack Compatible
Output Ports Included
RS-232

Description

UPS System, Online Double Conversion, Power Rating 5 kVA, Wattage 4 kW, Input Voltage 208V AC, 240V AC, Output Voltage 120V AC, 208V AC, 240V AC, Backup Time (Half/Full Load) 14.1 min/4.8 min, Mounting Rack/Tower, Outlet Type UPS/Surge, Number of Outlets 6, Medical Grade Not Medical Grade Approved, NEMA Receptacle Configuration (1) L14-30R, (1) L6-30R, (4) 5-20R, NEMA Plug Configuration L14-30P, Automatic Volts Regulation No, Fax/Modem Line Protection No, Transfer Time 0 msec, Width 17 in

Documents & Resources

Restrictions

Hazardous material
