  11. 1" FNPT Bronze Ball Valve 2-Way

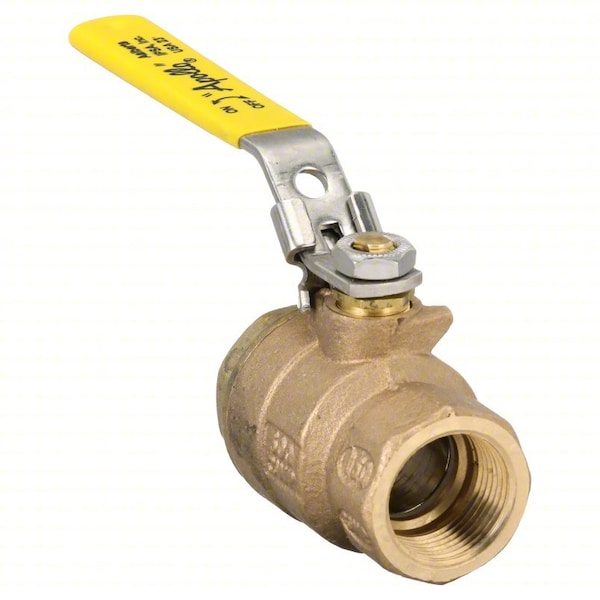

Apollo Valves 1" FNPT Bronze Ball Valve 2-Way 77C10527A - main

1" FNPT Bronze Ball Valve 2-Way

  • Mfr # 77C10527A

  • Zoro # G3956788

product price: $43.49
/ea

Key Features

Ball Material
Chrome Plated Brass
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
77C10527A
Zoro #
G3956788
UPC #
670750358838
Country of Origin
United States

Dimensions

Pipe Size
1 in
Overall Length
3.24 in
Nominal Valve Size
1 in
Handle Length
4.72 in
Connection Size - Side 2
1 in
Connection Size - Side 1
1 in

Details

Ball Material
Chrome Plated Brass
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
For Media
Steam
Connection Type
FNPT x FNPT
Item
Ball Valve
Temp. Range
-20 Degrees to 450 Degrees F
Body Material
Bronze
Handle Type
Lever
Compliance
MSS SP-110
Features
Dezincification Resistant
Hose I.D.
1 in
Ball Valve Product Group
Manual
Handle Material
Zinc Plated Steel with Vinyl Grip
Seat Material
RPTFE
Standards
ASTM B584-C84400, Build America Buy America Act (BABA), Buy American Act (BAA), CRN
Stem Type
Blowout Proof
Max. Pressure
600 PSI CWP
Stem Material
PTFE
Seal Material
RPTFE
Coefficient of Volume (Cv)
0.01
Color - Valve Body
Bronze
Connection Gender - Side 2
Female
Vented Ball Valve
Vented
Maximum Pressure - Combustible Gas
Not Rated
Connection Type - Side 2
NPT
Cleaned and Bagged
Not Cleaned and Bagged
Maximum Pressure - Steam
150 PSI WSP
Handle - Locking
Locking
Operating Temperature - Maximum
450 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Vacuum Service Rating
29 in Hg
Connection Gender - Side 1
Female
Connection Type - Side 1
NPT
3-A Standard Compliance
Not Rated
Color - Valve Handle
Yellow
Valve Series
77C

Description

Manual Two-Way Ball Valve, Body Material Bronze, For Media Steam, Valve Construction Two-Piece, Nominal Valve Size 1 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material Chrome-Plated Brass, Ball Port Style Full Port, Handle - Locking Locking, Handle Type Lever

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
