  11. 1" FNPT x MNPT Bronze Ball Valve Inline
Apollo Valves 1" FNPT x MNPT Bronze Ball Valve Inline 70LF80501 - main

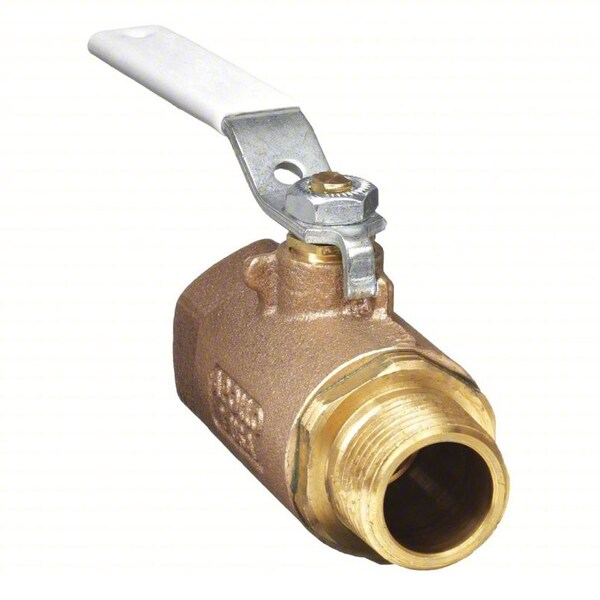

1" FNPT x MNPT Bronze Ball Valve Inline

  • Mfr # 70LF80501

  • Zoro # G6213821

product price: $73.59
/ea

Key Features

Ball Material
Chrome Plated Brass
Body Style
Inline
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
70LF80501
Zoro #
G6213821
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size
1 in
Overall Length
4.87 in
Nominal Valve Size
1 in
Handle Height
2.25 in
Connection Size - Side 2
1 in
Connection Size - Side 1
1 in
Handle Length
4.87 in

Details

Ball Material
Chrome Plated Brass
Body Style
Inline
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
Two-Piece
For Media
Steam, Water
Connection Type
FNPT x MNPT
Item
Ball Valve
Body Material
Bronze
Standards
Build America Buy America Act (BABA), Buy American Act (BAA), CRN, Material Quality C89836 (Lead-Free)
Stem Type
Blowout Proof
Handle Type
Lever
Temp. Range
-20 Degrees to 450 Degrees F
Features
Lead-Free Ball Vlave with Standard Handle
Ball Valve Product Group
Manual
Stem Material
PTFE
Compliance
MSS SP-110
Seat Material
RPTFE
Max. Pressure
600 PSI CWP
Handle Material
Zinc Plated Steel
Seal Material
RPTFE
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
425 Degrees F
Connection Type - Side 2
NPT
3-A Standard Compliance
Not Rated
Color - Valve Handle
Yellow
Vacuum Service Rating
29 in Hg
Connection Gender - Side 2
Female
Cleaned and Bagged
Not Cleaned and Bagged
Connection Type - Side 1
NPT
Color - Valve Body
Bronze
Coefficient of Volume (Cv)
0.01
NSF Certifications for Food and Drinking Water
NSF 61
Connection Gender - Side 1
Female
Maximum Pressure - Steam
150 PSI WSP
Handle - Locking
Non-Locking
Maximum Pressure - Combustible Gas
Not Rated
Valve Series
70

Description

Manual Two-Way Ball Valve, Body Material Bronze, For Media Steam, Water, Valve Construction Two-Piece, Nominal Valve Size 1 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material Chrome-Plated Bronze, Ball Port Style Standard Port, Handle - Locking Non-Locking
