  11. 1" Press Lead Free Bronze Swing Check Valve

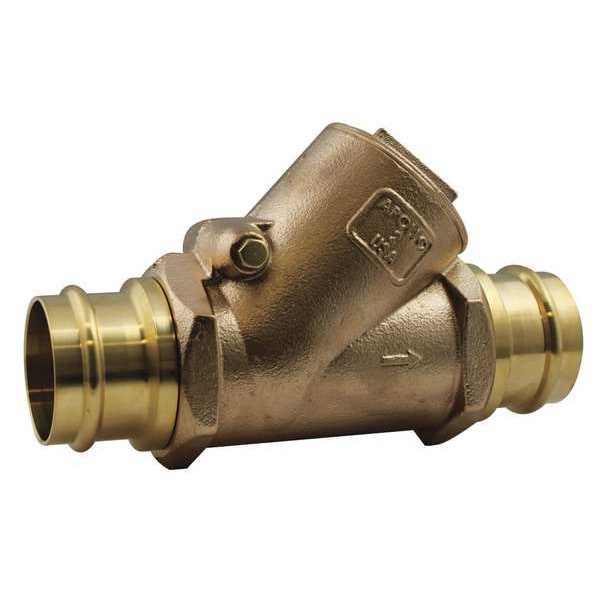

Apollo Valves 1" Press Lead Free Bronze Swing Check Valve 61YLF205T1PR - main

1" Press Lead Free Bronze Swing Check Valve

  • Mfr # 61YLF205T1PR

  • Zoro # G4692283

product price: $185.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
1"
Connection Type
Press
Connection
Press
Body Material
Lead Free Bronze
Max. Water Pressure
200 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
61YLF205T1PR
Zoro #
G4692283
UPC #
670750686382
Country of Origin
United States

Dimensions

Pipe Size
1"
Size
1"
Length
5 29/32 in
Pipe or Tube Size - Check Valves
1 in
Overall Height
2 17/64 in
Width
3 3/4 in
Overall Length
5.91 in
Pipe or Tube Size
1 in
Nominal Valve Size
1 in
Connection Size - Side 1
1 in
Connection Size - Side 2
1 in

Details

Connection Type
Press
Connection
Press
Body Material
Lead Free Bronze
Max. Water Pressure
200 psi
Flow Design
Single
Max. Steam Pressure
15 psi
Mounting Orientation - Check Valves
Horizontal, Vertical
Item
Swing Check Valve
Body Material - Valves
Bronze
Seal Material
NSF Grade EPDM
Max. Water Pressure - Valves
200 psi
Flow
28.6 gpm
Seat Material
RPTFE
Sub-Category
Bronze
Min. Temp. - Valves
33 Degrees F
Seal Material - Check Valves
EPDM
Max. Temp. - Valves
180 Degrees F
Mechanism and Body Design
Inline Swing
Cracking Pressure
0.500 psi
Cracking Pressure - Check Valves
0.5 psi
Max. Temp.
250 Degrees F
Seat Material - Check Valves
RPTFE
Material of Construction
Lead Free Bronze
Mounting Position
Vertical or Horizontal
Application - Valves
General Purpose
Compliance
NSF61-G, NSF 380
Item - Check Valves
Check Valve
Max. Steam Pressure - Valves
15 psi WSP
Connection Type - Check Valves
Press x Press
Standards
NSF 372, NSF61-G
Flow - Valves
28.6 gpm
Spring Material
316 Stainless Steel
Mounting Orientation
Horizontal, Vertical
Connection Type - Side 2
Press
Coefficient of Volume (Cv)
6
Valve Ways
2-Way
Valve Body Style
Y-Style
Maximum Pressure - Operating
200 psi
Operating Temperature - Minimum
0 Degrees F
Maximum Pressure - Steam
15 psi
Check Mechanism
Swing
Includes Counterweight
No Counterweight
Silent Check
Standard
Vacuum Service Rating
Not Rated
For Media
Steam, Water
Operating Temperature - Maximum
250 Degrees F
Check Mechanism Material
RPTFE
Connection Type - Side 1
Press
Connection Gender - Side 1
Female
3-A Standard Compliance
Not Rated
Connection Gender - Side 2
Female
NSF Certifications for Food and Drinking Water
NSF 61
Valve Series
61Y

Description

Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Swing, Body Material - Valves Bronze, Pipe or Tube Size 1 in, Connection Type Press x Press, Cracking Pressure 0.5 psi, Mounting Orientation Horizontal, Vertical, Seal Material EPDM, Max. Temp. - Valves 180 Degrees F, Min. Temp. - Valves 33 Degrees F, Max. Water Pressure - Valves 200 psi, Max. Steam Pressure - Valves 15 psi WSP, Seat Material RPTFE, Flow - Valves 28.6 gpm, Application - Valves General Purpose
