  6. 1/2" FNPT Bronze Ball Cone Spring Check Valve

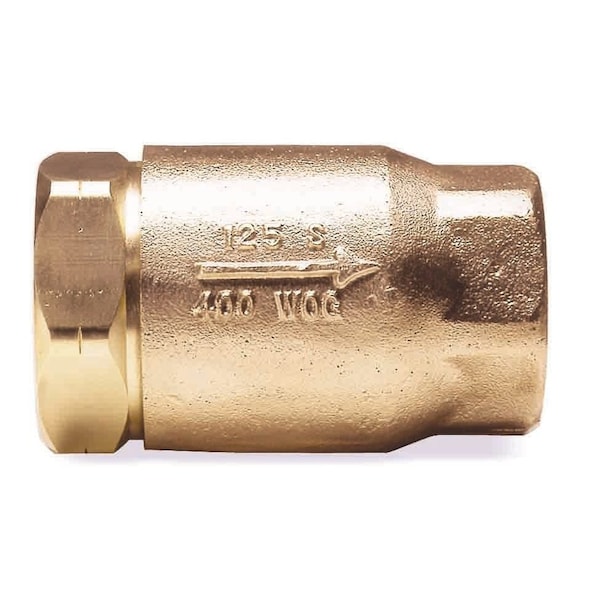

Apollo Valves 1/2" FNPT Bronze Ball Cone Spring Check Valve 6110301 - main

1/2" FNPT Bronze Ball Cone Spring Check Valve

  • Mfr # 6110301

  • Zoro # G1334331

product price:  $35.55
/ea

Key Features

Pipe Size
1/2"
Connection Type
FNPT x FNPT
Connection
FNPT
Body Material
Cast Bronze
Mounting Orientation - Check Valves
Horizontal, Vertical
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
6110301
Zoro #
G1334331
UPC #
670750631979
Country of Origin
United States

Dimensions

Pipe Size
1/2"
Overall Height
1-1/8"
Length
2.31"
Size
1/2"
Pipe or Tube Size - Check Valves
1/2 in
Width
1.12"
Overall Length
2.31 in
Pipe or Tube Size
1/2 in
Connection Size - Side 1
1/2 in
Nominal Valve Size
1/2 in
Connection Size - Side 2
1/2 in

Details

Connection Type
FNPT x FNPT
Connection
FNPT
Body Material
Cast Bronze
Mounting Orientation - Check Valves
Horizontal, Vertical
Connection Type - Check Valves
FNPT x FNPT
Spring Material - Check Valves
Stainless Steel
Body Material - Valves
Bronze
Cracking Pressure
0.5 psi
Mounting Position
Vertical or Horizontal
Max. Pressure
400 psi @ 100 Degrees F, Steam: 125 psi @ 350 Degrees F
Cracking Pressure - Check Valves
0.500 psi
Application - Valves
General Purpose
Material of Construction
Bronze
Seat Material - Check Valves
RPTFE
Flow Design
Single
Sub-Category
Bronze
Max. Steam Pressure
125 psi SWP
Max. Temp.
406 Degrees F
Mechanism and Body Design
Inline Ball Cone
Min. Temp. - Valves
33 Degrees F
Standards
Build America Buy America (BABA) Act, Buy American Act (BAA), CRN
Max. Water Pressure
400 psi Non Shock CWP
Seat Material
RPTFE
Item - Check Valves
Check Valve
Max. Water Pressure - Valves
400 psi
Seal Material - Check Valves
EPDM
Spring Material
316 Stainless Steel
Max. Steam Pressure - Valves
125 psi WSP
Item
Ball Cone Spring Check Valve
Max. Temp. - Valves
180 Degrees F
Flow
1.4 gpm
Seal Material
RPTFE
Mounting Orientation
Horizontal, Vertical
Seal
Viton
Type
Ball Cone
Includes Counterweight
No Counterweight
Valve Body Style
Inline
Check Mechanism Material
RPTFE
Operating Temperature - Minimum
33 Degrees F
Valve Ways
2-Way
Check Mechanism
Ball
Connection Gender - Side 1
Female
Maximum Pressure - Steam
125 psi
Connection Type - Side 2
NPT
Connection Type - Side 1
NPT
Maximum Pressure - Operating
400 psi
For Media
Steam
Vacuum Service Rating
Not Rated
Coefficient of Volume (Cv)
1.4
Connection Gender - Side 2
Female
Silent Check
Standard
3-A Standard Compliance
Not Rated
Operating Temperature - Maximum
406 Degrees F
Valve Series
61

Description

The APOLLO VALVES 6110301 is a 1/2 in inline Ball Cone spring check valve for general purpose and steam service. It has a cast bronze body with FNPT x FNPT female connections, a spring-actuated ball check mechanism, and an RPTFE Ball Cone and seat for chemical and corrosion resistance. This valve is designed for straight-through flow and can be installed in horizontal or vertical lines with upward flow.

Key Features of the APOLLO VALVES 6110301 Ball Cone Spring Check Valve:

  • 1/2 in FNPT x FNPT connections: Female NPT threaded ends on both sides for inline piping.
  • Ball Cone spring check mechanism: Spring-actuated design that helps control reverse flow.
  • Bronze body: Cast bronze construction for plumbing and valve service.
  • RPTFE Ball Cone and seat: RPTFE internal components for chemical resistance.
  • Cracking pressure: 0.5 psi opening pressure.
  • Pressure ratings: 400 psi non-shock CWP at 100 degrees F and 125 psi steam working pressure at 350 degrees F.
  • Temperature range: 33 to 406 degrees F operating temperature.
  • Mounting orientation: Can be installed horizontally or vertically.
  • Flow coefficient: Cv 1.4.
  • Factory tested: 100% factory tested.
  • Standards: Build America Buy America Act, Buy American Act, and CRN.
  • Dimensions: 2.31 in overall length and 1-1/8 in overall height.

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
