Apollo Valves

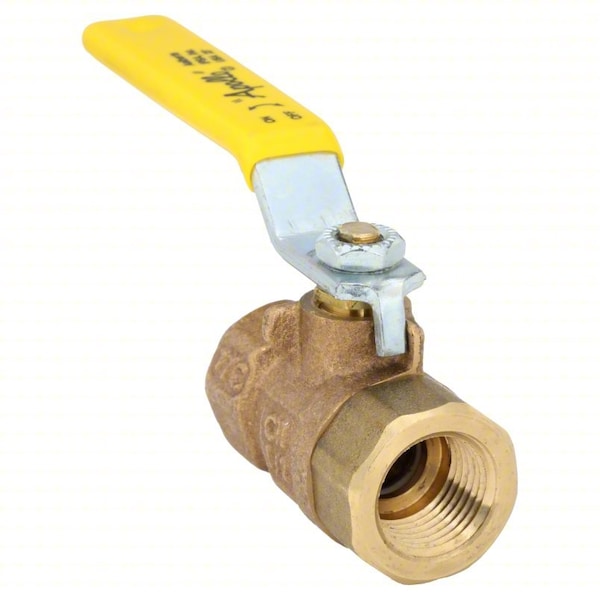

1/2" FNPT Bronze Ball Valve 2-Way

product price: $22.19
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Body Material Bronze
  • Body Style Inline
  • Tube Size 1/2 in
  • Max. Pressure 600 psi CWP
  • Features Dezincification Resistant
See all product information

Product Information

Dimensions

Pipe Size 1/2 in
Tube Size 1/2 in
Overall Length 2.29 in
Connection Size - Side 2 1/2 in
Nominal Valve Size 1/2 in
Handle Height 1.79 in
Handle Length 3.82 in
Connection Size - Side 1 1/2 in

Details

Body Material Bronze
Body Style Inline
Max. Pressure 600 psi CWP
Features Dezincification Resistant
Stem Type Blowout Resistant
Ball Valve Basic Body Material Bronze
Body Seal Material RPTFE
Temp. Range -20 Degrees to 450 Degrees F
Ball Valve Product Group Manual
Ball Material Chrome-Plated Brass
Seat Material PTFE
Max. Steam Pressure 150 psi WSP
Stem Material PTFE
Handle Type Lever
Port Full
Connection Type FNPT x FNPT
Valve Structure 2-Piece
Standards ASTM B584-C84400, Build America Buy America Act (BABA), Buy American Act (BAA), CRN
Item Manual Two-Way Ball Valve
Handle Material PVC, Zinc-Plated Steel
Compliance MSS SP-110
Hose I.D. 1/2 in
Seal Material PTFE
Sub-Category Bronze Ball Valves
Valve Ways 2-Way
Color - Valve Body Bronze
Operating Temperature - Maximum 450 Degrees F
Connection Type - Side 2 NPT
Vented Ball Valve Vented
Handle - Locking Non-Locking
Connection Type - Side 1 NPT
3-A Standard Compliance Not Rated
Coefficient of Volume (Cv) 16
Color - Valve Handle Yellow
Operating Temperature - Minimum -20 Degrees F
Connection Gender - Side 1 Female
Maximum Pressure - Operating 600 psi
Ball Port Style Full Port
Connection Gender - Side 2 Female
Manufacturer Warranty 5 yr
Maximum Pressure - Combustible Gas Not Rated
For Media Steam
Vacuum Service Rating 29 in Hg
Cleaned and Bagged Not Cleaned and Bagged
Valve Body Style Straight
Maximum Pressure - Steam 150 psi
Valve Construction Two-Piece

Description

Manual Two-Way Ball Valve, Body Material Bronze, For Media Steam, Valve Construction Two-Piece, Nominal Valve Size 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material Chrome-Plated Brass, Ball Port Style Full Port, Handle - Locking Non-Locking, Handle Type Lever

Restrictions

  • WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
