Apollo Valves

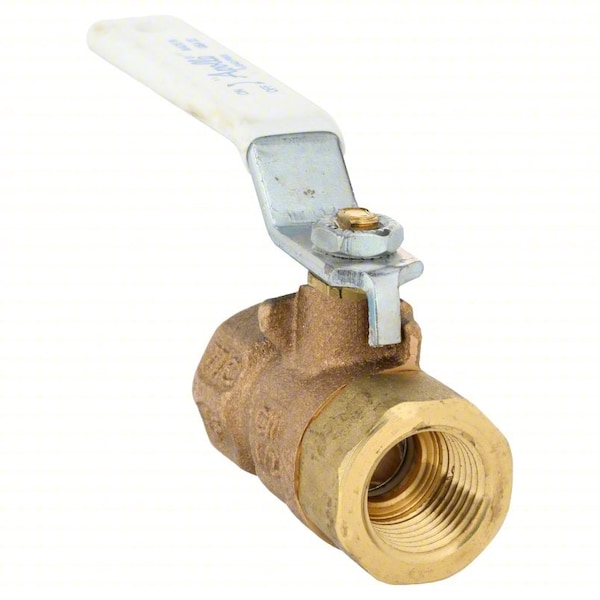

1/2" FNPT Bronze Ball Valve 2-Way

product price: $20.29
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Body Material Lead-Free Bronze
  • Body Style Inline
  • Tube Size 1/2"
  • Standards IAPMO RT/UPC-Z1157, NSF/ANSI 372, NSF/ANSI 61
  • Max. Pressure 600 psi CWP
See all product information

Product Information

Dimensions

Pipe Size 1/2"
Tube Size 1/2"
Overall Length 2.29 in
Handle Length 3.82 in
Connection Size - Side 1 1/2 in
Handle Height 1.79 in
Connection Size - Side 2 1/2 in
Nominal Valve Size 1/2 in

Details

Body Material Lead-Free Bronze
Body Style Inline
Standards IAPMO RT/UPC-Z1157, NSF/ANSI 372, NSF/ANSI 61
Max. Pressure 600 psi CWP
Compliance MSS SP-110
Body Seal Material RPTFE
Hose I.D. 1/2 in
Max. Steam Pressure 150 psi WSP
Handle Type Lever
Valve Structure 2-Piece
Ball Valve Product Group Manual
Connection Type FNPT x FNPT
Handle Material Zinc Plated Steel with Vinyl Grip
Temp. Range -20 Degrees to 450 Degrees F
Ball Valve Basic Body Material Bronze
Stem Material Lead Free Brass
Item Ball Valve
Seat Material RPTFE
Stem Type Blowout Proof
Port Full
Features Dezincification Resistant
Ball Material Lead Free Chrome Plated Brass
Seal Material PTFE
Sub-Category Bronze Ball Valves
Ball Port Style Full Port
Connection Gender - Side 1 Female
3-A Standard Compliance Not Rated
Vacuum Service Rating 29 in Hg
Connection Gender - Side 2 Female
Connection Type - Side 1 NPT
NSF Certifications for Food and Drinking Water NSF 61
For Media Water
Color - Valve Body Bronze
Operating Temperature - Minimum -20 Degrees F
Maximum Pressure - Steam 150 psi
Maximum Pressure - Operating 600 psi
Connection Type - Side 2 NPT
Valve Ways 2-Way
Cleaned and Bagged Not Cleaned and Bagged
Maximum Pressure - Combustible Gas Not Rated
Color - Valve Handle Yellow
Coefficient of Volume (Cv) 16
Valve Body Style Straight
Valve Construction Two-Piece
Manufacturer Warranty 5 yr
Operating Temperature - Maximum 450 Degrees F
Handle - Locking Non-Locking

Description

Manual Two-Way Ball Valve, Body Material Brass, Bronze, For Media Water, Valve Construction Two-Piece, Nominal Valve Size 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material Chrome-Plated Brass, Ball Port Style Full Port, Handle - Locking Non-Locking, Handle Type Lever
