This item is Discontinued.

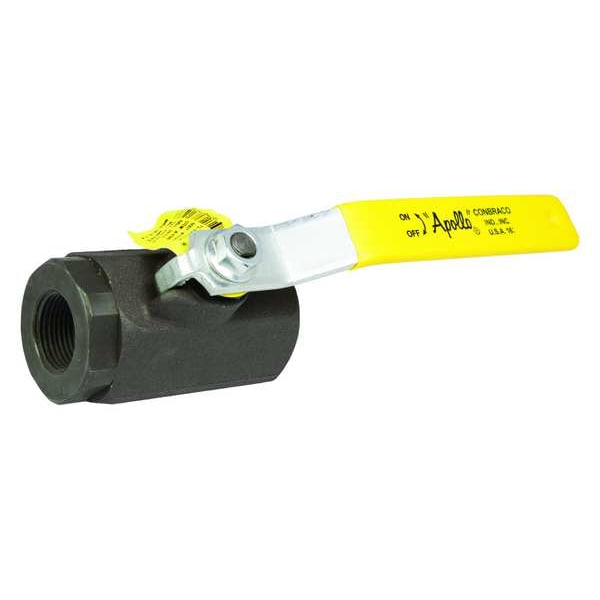

Apollo Valves 1/2" FNPT Carbon Steel Ball Valve Inline 72-103-01-A

1/2" FNPT Carbon Steel Ball Valve Inline (Discontinued)

  • Mfr # 72-103-01-A
  • Zoro # G3328972
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
72-103-01-A
Zoro #
G3328972
UPC #
670750680717
Country of Origin
United States

Dimensions

Pipe Size
1/2"
Overall Length
4.16 in
Handle Length
4.76 in
Connection Size - Side 1
1/2 in
Handle Height
2.09 in
Nominal Valve Size
1/2 in
Connection Size - Side 2
1/2 in

Details

Ball Material
Carbon Steel
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
2-Piece
For Media
Air, Natural Gas
Connection Type
FNPT x FNPT
Item
Ball Valve
Max. Pressure
3000 psi CWP
Temp. Range
-20 Degrees to 450 Degrees F
Ball Valve Basic Body Material
Carbon Steel
Body Seal Material
RPTFE
Seat Material
RPTFE
Features
High Pressure
Stem Type
Blowout Proof
Compliance
ISO 9001
Stem Material
Chrome-Plated Carbon Steel
Max. Steam Pressure
150 PSI WSP
Body Material
Carbon Steel
Standards
MSS SP-110
Port
Standard
Handle Type
Lever
Ball Valve Product Group
Manual
Handle Material
Zinc Plated Steel with Vinyl Grip
Seal Material
PTFE
Type
Two Piece
Connection
FNPT
Sub-Category
Steel Ball Valves
Material of Construction
Carbon Steel
Maximum Pressure - Steam
150 psi
Connection Gender - Side 1
Female
Maximum Pressure - Operating
3,000 psi
Valve Body Style
Straight
Cleaned and Bagged
Not Cleaned and Bagged
Maximum Pressure - Combustible Gas
Not Rated
Operating Temperature - Minimum
-20 Degrees F
Manufacturer Warranty
5 yr
Connection Gender - Side 2
Female
Vacuum Service Rating
29 in Hg
Coefficient of Volume (Cv)
26
Connection Type - Side 2
NPT
Valve Construction
Two-Piece
Handle - Locking
Non-Locking
Color - Valve Body
Black
Operating Temperature - Maximum
500 Degrees F
Color - Valve Handle
Yellow
Pipe Schedule Compatibility
Schedule 40
Connection Type - Side 1
NPT
3-A Standard Compliance
Not Rated
Valve Series
72

Description

Manual Two-Way Ball Valve, Body Material Carbon Steel, For Media Air, Natural Gas, Valve Construction Two-Piece, Nominal Valve Size 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 3,000 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material Carbon Steel, Ball Port Style Full Port, Handle - Locking Non-Locking

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
