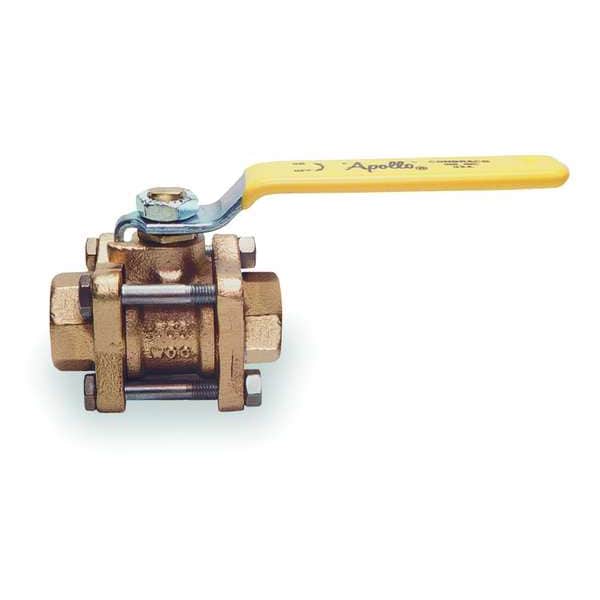

Apollo Valves 1/4" FNPT Bronze Ball Valve Inline 8210101 - main

1/4" FNPT Bronze Ball Valve Inline

  • Mfr # 8210101

  • Zoro # G1098395

product price: $47.39
/ea

Key Features

Ball Material
Chrome Plated Bronze
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Three-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
8210101
Zoro #
G1098395
UPC #
670750720116
Country of Origin
United States

Dimensions

Pipe Size
1/4 in
Overall Length
2.56 in
Connection Size - Side 2
1/4 in
Handle Length
3.87 in
Handle Height
1.81 in
Connection Size - Side 1
1/4 in
Nominal Valve Size
1/4 in

Details

Ball Material
Chrome Plated Bronze
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Three-Piece
For Media
Steam
Connection Type
FNPT x FNPT
Item
Ball Valve
Features
In-Line Repairable
Temp. Range
-20 Degrees to 450 Degrees F
Compliance
ISO 9001
Body Material
Bronze
Standards
ASTM B584-C84400, Build America Buy America Act (BABA), Buy American Act (BAA), CRN
Ball Valve Product Group
Manual
Max. Pressure
600 PSI CWP
Stem Type
Blowout Proof
Handle Type
Lever
Seat Material
RPTFE
Handle Material
Zinc Plated Steel with Vinyl Grip
Stem Material
Brass
Seal Material
RPTFE
Type
Three Piece
Color - Valve Body
Bronze
Maximum Pressure - Combustible Gas
Not Rated
Connection Type - Side 2
NPT
3-A Standard Compliance
Not Rated
Connection Type - Side 1
NPT
Connection Gender - Side 1
Female
Connection Gender - Side 2
Female
Cleaned and Bagged
Not Cleaned and Bagged
Coefficient of Volume (Cv)
0.01
Vacuum Service Rating
29 in Hg
Maximum Pressure - Steam
150 PSI WSP
Operating Temperature - Minimum
-20 Degrees F
Color - Valve Handle
Yellow
Handle - Locking
Non-Locking
Operating Temperature - Maximum
500 Degrees F
Valve Series
82

Description

Manual Two-Way Ball Valve, Body Material Bronze, For Media Steam, Valve Construction Three-Piece, Nominal Valve Size 1/4 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material Chrome-Plated Bronze, Ball Port Style Full Port, Handle - Locking Non-Locking, Handle Type Lever

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
