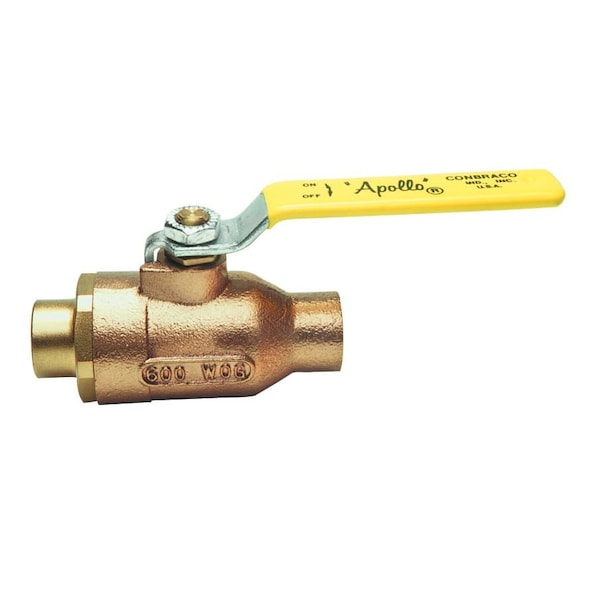

Apollo Valves 3/4" Sweat Bronze Ball Valve Inline 7720401 - main

3/4" Sweat Bronze Ball Valve Inline

  • Mfr # 7720401

  • Zoro # G1788936

product price: $41.59
/ea

Key Features

Ball Material
Chrome Plated Bronze
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
7720401
Zoro #
G1788936
UPC #
670750707148
Country of Origin
United States

Dimensions

Pipe Size
3/4 in
Overall Length
4.12 in
Connection Size - Side 2
3/4 in
Nominal Valve Size
3/4 in
Handle Length
4.87 in
Connection Size - Side 1
3/4 in

Details

Ball Material
Chrome Plated Bronze
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
For Media
Steam
Connection Type
Sweat x Sweat
Item
Ball Valve
Compliance
ISO 9001
Features
Mounting Pad for Actuation
Handle Type
Lever
Body Material
Bronze
Temp. Range
Up to 500 Degrees F
Standards
ASTM B584-C84400, Build America Buy America Act (BABA), Buy American Act (BAA), CRN
Max. Pressure
600 PSI CWP
Stem Type
Blowout Proof
Handle Material
Zinc Plated Steel with Vinyl Grip
Seat Material
RPTFE
Stem Material
Brass
Ball Valve Product Group
Manual
Seal Material
PTFE
Type
Two Piece
Maximum Pressure - Combustible Gas
Not Rated
Handle - Locking
Non-Locking
Operating Temperature - Maximum
500 Degrees F
Coefficient of Volume (Cv)
0.01
3-A Standard Compliance
Not Rated
Connection Type - Side 1
Sweat
Operating Temperature - Minimum
0 Degrees F
Maximum Pressure - Steam
150 PSI WSP
Cleaned and Bagged
Not Cleaned and Bagged
Color - Valve Body
Bronze
Color - Valve Handle
Yellow
Connection Type - Side 2
Sweat
Valve Series
77

Description

Manual Two-Way Ball Valve, Body Material Bronze, For Media Steam, Valve Construction Two-Piece, Nominal Valve Size 3/4 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Applicable, Ball Material Chrome-Plated Bronze, Ball Port Style Full Port, Handle - Locking Non-Locking, Handle Type Lever

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
