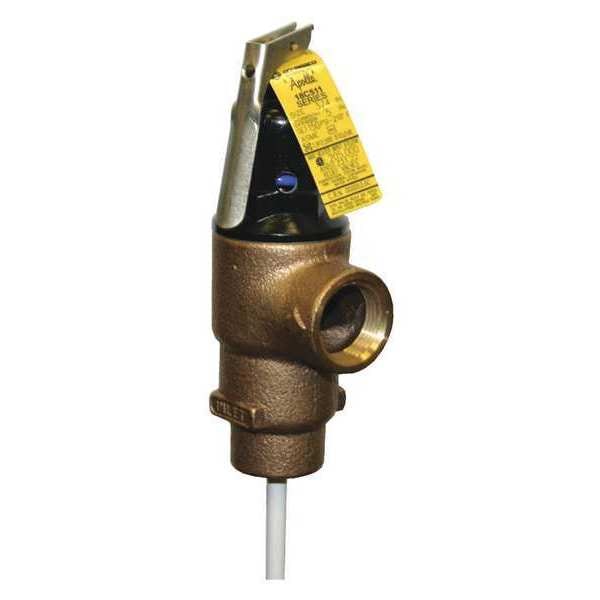

T and P Relief Valve, FNPT, 3/4 In. Inlet
Mfr # 18C5125125
Zoro # G2774046
product price:Â
$
90.25
/ea
Key Features
Inlet Size
3/4"
Outlet Size
3/4"
Body Material
Bronze
Outlet Type
FNPT
Inlet Type
FNPT
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 18C5125125
- Zoro #
- G2774046
- UPC #
- 670750139802
- Country of Origin
- United States
- Body Material
- Bronze
- Item
- Temperature and Pressure Relief Valve
- Outlet Type
- FNPT
- Inlet Type
- FNPT
- Spring Material
- Stainless Steel
- BtuH
- 205,000 BtuH
- Factory Set Pressure
- 125 psi
- Auto Re-Seating
- Yes
- Max. Temp.
- 210 Degrees F
- Standards
- ANSI Z21.22, ASME Code HV, CSA
- Type
- Direct Acting
- Application
- Water Heaters
- Operating Pressure - Maximum
- 150 psi
- Outlet Connection Gender
- Female
- For Media
- Hot Water
- Inlet Connection Gender
- Female
- Preset Temperature
- 210 Degrees F
- Outlet Connection Type
- NPT
- Operating Temperature - Minimum
- 32 Degrees F
- Operating Temperature - Maximum
- 210 Degrees F
- ASME Section Code
- Section IV
- Inlet Connection Type
- NPT
Description
Temperature and Pressure Relief Valve, Inlet Type FNPT, Outlet Type FNPT, Inlet Size 3/4 in, Outlet Size 3/4 in, Thermostat Length 5 in, Body Height 5 5/8 in, 205,000 BtuH BtuH, Factory Set Pressure 125 psi, Max. Temp. 210 Degrees F, Shank Length Standard, Auto Re-Seating Yes, Body Material Bronze, Spring Material Stainless Steel, Body Width 6 1/2 in, Standards ANSI Z21.22, ASME Code HV, CSA
