  11. Vacuum Breaker, 1-1/4 In., FNPT, Bronze
Apollo Valves Vacuum Breaker, 1-1/4 In., FNPT, Bronze 3810601 - main

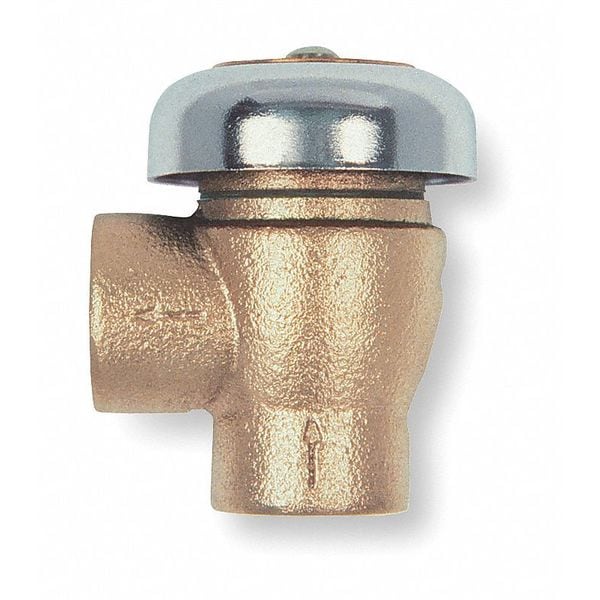

Vacuum Breaker, 1-1/4 In., FNPT, Bronze

  • Mfr # 3810601

  • Zoro # G0283762

product price: $189.99
/ea
Free Shipping & Returns

Key Features

Body Material
Bronze
Size
1 1/4"
Connection Type
FNPT
Max. Pressure
125 psi
Seal
Silicone
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3810601
Zoro #
G0283762
UPC #
670750565588
Country of Origin
United States

Dimensions

Size
1 1/4"
Width
3 3/4 in
Height
4 3/8 in
Pipe Size
1 1/4"
Nominal Valve Size
1 1/4 in
Overall Length
4.38 in
Connection Size - Side 2
1 1/4 in
Connection Size - Side 1
1 1/4 in

Details

Body Material
Bronze
Connection Type
FNPT
Max. Pressure
125 psi
Seal
Silicone
Item
Vacuum Breaker
Material of Construction
Bronze
Temp. Range
180 Degrees F
Standards
ASSE1001
Connection
NPT
Operating Temperature - Minimum
32 Degrees F
Includes Atmospheric Vent
Atmospheric Vent Included
For Media
Water
Maximum Pressure - Operating
125 psi
Connection Gender - Side 1
Female
Manufacturer Warranty
5 yr
Operating Temperature - Maximum
180 Degrees F
Vacuum Breaker Style
Atmospheric Vacuum Breaker
Connection Gender - Side 2
Female
Connection Type - Side 2
NPT
Hazard Protection Level
Low Health Hazard
Includes Freeze Protection
No Freeze Protection
Connection Type - Side 1
NPT
Seat Material
Silicone
Check Mechanism Material
Silicone
Body Finish
Rough Brass
Seal Material
Silicone
Valve Series
38

Description

Vacuum Breaker, Size 1 1/4 in, Connection Type FNPT, Material of Construction Bronze, Seal Silicone, Max. Pressure 125 psi, Temp. Range 180 Degrees F, Height 4 3/8 in, Width 3 3/4 in, Standards Build America Buy America (BABA) Act, Buy American Act (BAA), Not Applicable

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
