Shop WATTS

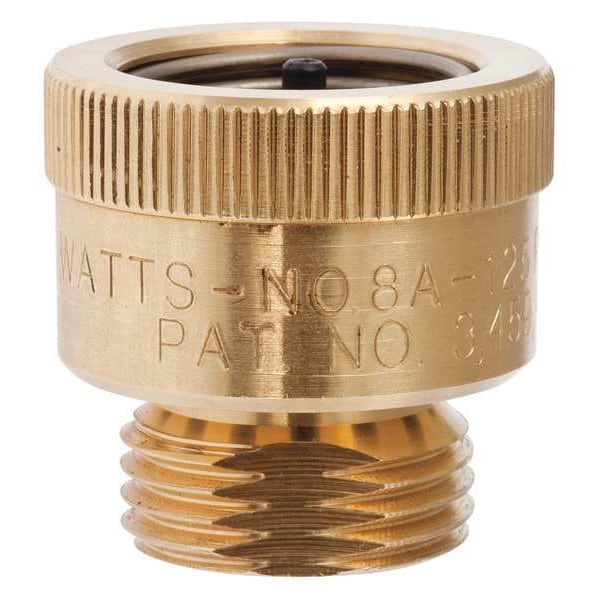

Vacuum Breaker, 1-1/2inH, Non-Removable

  • Mfr # LF8A

  • Zoro # G0469220

product price:  $93.69
/ea

Key Features

Body Material
Lead Free Copper Silicon Alloy
Size
3/4"
Connection Type
GHT
Max. Pressure
125 psi
Seal
Rubber
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LF8A
Zoro #
G0469220
UPC #
098268434781
Country of Origin
Mexico

Dimensions

Size
3/4"
Width
1 1/2 in
Height
1 1/2 in
Pipe Size
3/4"
Overall Length
1.5 in
Connection Size - Side 2
3/4 in
Connection Size - Side 1
3/4 in
Nominal Valve Size
3/4 in
Wire Rope Length
1.5 in

Details

Body Material
Lead Free Copper Silicon Alloy
Connection Type
GHT
Max. Pressure
125 psi
Seal
Rubber
Item
Atmospheric Vacuum Breaker
Compliance
ANSI A112.1.3, ASSE 1011, Lead Free
Material of Construction
Lead Free Copper Silicon Alloy
Standards
ANSI A112.1.3 (ASSE 1011), ASSE 1001, cCSAus B64.2, IAPMO, NSF/ANSI 372, UPC
Temp. Range
33 Degrees to 180 Degrees F
Connection Type - Side 2
GHT
Connection Gender - Side 1
Female
Connection Type - Side 1
GHT
Flow
10 gpm
Maximum Pressure - Operating
125 psi
Operating Temperature - Minimum
33 Degrees F
Includes Drain Capability
Manual Drain
Operating Temperature - Maximum
180 Degrees F
Hazard Protection Level
High Health Hazard
Includes Freeze Protection
Freeze Protection Included
Seal Material
Rubber
Hose Bib Securing Mechanism
Non-Removable
Includes Atmospheric Vent
No Atmospheric Vent
For Media
Water
Vacuum Breaker Style
Hose Bib Vacuum Breaker
Manufacturer Warranty
1 yr
Connection Gender - Side 2
Male
Valve Series
LF8

Description

Atmospheric Vacuum Breaker, Size 3/4 in, Connection Type GHT, Material of Construction Lead Free Copper Silicon Alloy, Seal Rubber, Max. Pressure 125 psi, Temp. Range 33 Degrees to 180 Degrees F, Height 1 1/2 in, Width 1 1/2 in, Standards ANSI A112.1.3 (ASSE 1011), ASSE 1001, cCSAus B64.2, IAPMO, NSF/ANSI 372, UPC, Compliance ANSI A112.1.3, ASSE 1011, Lead Free
