  11. Water Pressure Reducing Valve, 1/2 In.
Apollo Valves Water Pressure Reducing Valve, 1/2 In. 36ELF10301PR - main

Water Pressure Reducing Valve, 1/2 In.

  • Mfr # 36ELF10301PR

  • Zoro # G4713834

product price: $110.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
1/2"
Connection Type
No Union NPT x Press
Body Material
Lead Free Brass, UNS 89836
Max. Pressure
250 psi
Max. Temp.
180 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
36ELF10301PR
Zoro #
G4713834
UPC #
670750760068
Country of Origin
United States

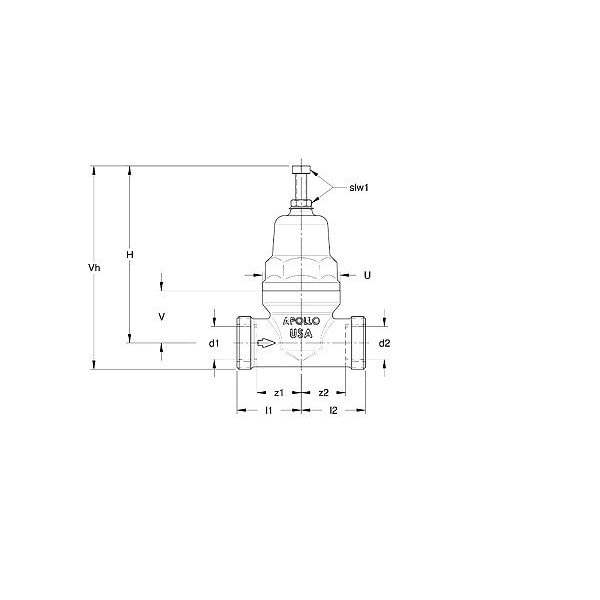

Dimensions

Pipe Size
1/2"
Height
4 3/4 in
Length
5 1/2 in
Overall Height
5 5/8 in
Inlet Connection Size
1/2 in
Outlet Connection Size
1/2 in
Overall Width
5 3/8 in

Details

Connection Type
No Union NPT x Press
Body Material
Lead Free Brass, UNS 89836
Max. Pressure
250 psi
Max. Temp.
180 Degrees F
Item
Water Pressure Reducing Valve
Material
Lead Free Bronze
Valve Type
High Capacity
Strainer
Yes
Pressure Adjustment Range
15 to 75 psig
Application
Water
Preset Pressure Settings
50 psi
Standards
Annex F & G, ARRA, ASSE 1003-2009, CSA B356, NSF 372, NSF/ANSI 61-G
Material of Construction
Low Lead Bronze
Connection
Press
Factory Set Pressure
50 psi
Disc Material
EPDM
Seat Material
EPDM
For Media
Water
Operating Pressure - Maximum
150 psi
Coating/Lining
NSF Listed Fusion Bonded Epoxy Lining and Coating
Flow Rate - Continuous Maximum
36 gpm
Inlet Connection Type
Press
Fluid Temperature - Maximum
180 Degrees F
NSF Certifications for Food and Drinking Water
NSF 61
Outlet Connection Type
Press
Includes Strainer
Strainer Included
Pilot Adjustment - Minimum
29.7 psi
Pilot Adjustment - Maximum
89.7 psi
Operating Pressure - Minimum
15 psi

Description

Water Pressure Reducing Valve, Material of Construction Low Lead Bronze, Inlet/Outlet 1/2 In., Press Connection, Max. Working Pressure (PSI) 250, Adjustable Range 15 to 75 psi, Pressure Setting 50 psi, Max. Temp. (F) 180 Degrees , Height (In.) 4-3/4, Length (In.) 5-1/2, Certification NSF/ANSI 61 (2010) SECTION 8 ANNEX F & G, Standards NSF/ANSI 61-8 2010, ASSE 1003-2009,CSA B356, Compliance ARRA

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
