Shop APOLLO VALVES

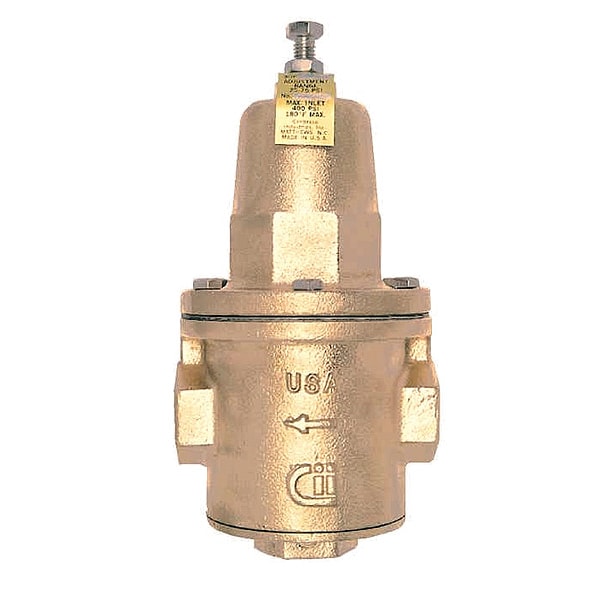

Water Pressure Reducing Valve, 1/2 In.

  • Mfr # 36H20301

  • Zoro # G2247332

product price:  $123.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
1/2 in
Inlet Size
1/2"
Connection Type
FNPT x FNPT
Body Material
ASTM Grade Bronze and Stainless Steel
Max. Pressure
400 psig
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
36H20301
Zoro #
G2247332
UPC #
670750562679
Country of Origin
United States

Dimensions

Pipe Size
1/2 in
Inlet Size
1/2"
Length
4.12"
Height
9-1/4"
Overall Height
5 5/8 in
Inlet Connection Size
1/2 in
Overall Width
4 1/8 in
Outlet Connection Size
1/2 in

Details

Connection Type
FNPT x FNPT
Body Material
ASTM Grade Bronze and Stainless Steel
Max. Pressure
400 psig
Max. Temp.
180 Degrees F
Item
Water Pressure Reducing Valve
Application
Commercial Use, Institutional Use, Residential Use
Standards
ASSE 1003, Build America Buy America (BABA) Act, Buy American Act (BAA), CSA B356
Valve Type
Super Capacity
Pressure Adjustment Range
25 to 75 psi
Material
Bronze
Strainer
No
Preset Pressure Settings
50 psi
Connection
FNPT
Material of Construction
Bronze
Factory Set Pressure
50 psi
Operating Pressure - Maximum
400 psi
Outlet Connection Type
NPT
Pilot Adjustment - Maximum
75 psig
Includes Strainer
Strainer Not Included
Inlet Connection Type
NPT
Operating Pressure - Minimum
25 psi
For Media
Water
Fluid Temperature - Maximum
180 Degrees F
Pilot Adjustment - Minimum
25 psig
Flow Rate - Continuous Maximum
29 gpm

Description

Water Pressure Reducing Valve, Super Capacity, Material of Construction Bronze, Inlet/Outlet 1/2 In, FNPT Connection, Max Working Pressure 400 PSI, Adjustable Range 25 to 75 PSI, Pressure Setting 50 PSI, Max Temp 180 F, Height 7 In, Length 4 In, Standards ASSE 1003, ANSI A112.26.2, CSA B356, IAPMO

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
