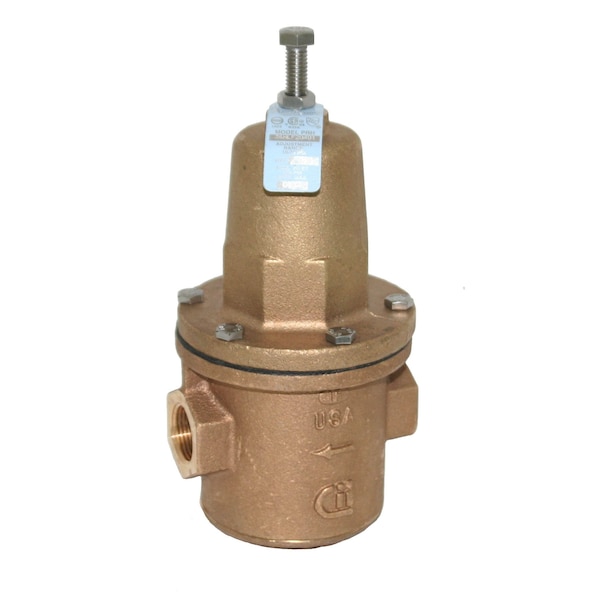

Apollo Valves Water Pressure Reducing Valve, 2 In. 36HLF20801 - main

Water Pressure Reducing Valve, 2 In.

  • Mfr # 36HLF20801

  • Zoro # G5156496

product price: $986.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
2"
Inlet Size
2"
Connection Type
FNPT x FNPT
Body Material
Lead Free Bronze and Stainless Steel Material
Max. Pressure
400 psig
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
36HLF20801
Zoro #
G5156496
UPC #
670750512797
Country of Origin
United States

Dimensions

Pipe Size
2"
Inlet Size
2"
Height
12 1/2 in
Length
8 1/8 in
Overall Height
5 5/8 in
Outlet Connection Size
2 in
Overall Width
8 1/8 in
Inlet Connection Size
2 in

Details

Connection Type
FNPT x FNPT
Body Material
Lead Free Bronze and Stainless Steel Material
Max. Pressure
400 psig
Max. Temp.
180 Degrees F
Item
Water Pressure Reducing Valve
Pressure Adjustment Range
25 to 75 psi
Valve Type
Super Capacity
Material
Lead Free Bronze
Strainer
No
Preset Pressure Settings
50 psi
Application
Commercial, Industrial and Institutional
Standards
ASSE 1003, CSA B356, NSF 372,ARRA
Connection
FNPT
Material of Construction
Lead Free Bronze
Factory Set Pressure
50 psi
Pilot Adjustment - Minimum
25 psig
Outlet Connection Type
NPT
Operating Pressure - Minimum
25 psi
Fluid Temperature - Maximum
180 Degrees F
Operating Pressure - Maximum
400 psi
NSF Certifications for Food and Drinking Water
NSF 372
For Media
Water
Pilot Adjustment - Maximum
75 psig
Coating/Lining
NSF Listed Fusion Bonded Epoxy Lining and Coating
Flow Rate - Continuous Maximum
313 gpm
Inlet Connection Type
NPT
Includes Strainer
Strainer Not Included

Description

Valve, Pressure Reducing, Material of Construction Lead Free Bronze, Inlet/Outlet 2 In., NPT X NPT Connection, Max. Working Pressure (PSI) 400, Adjustable Range 25-75 psi, Pressure Setting 50 psi, Max. Temp. (F) 180, Height (In.) 12-1/2, Length (In.) 8-13/100, Certification CA AB1953, VT ACT 193, Standards ASSE 1003/CSA B356, Compliance ARRA

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
