  11. 3W 4P 100A Hazardous Location Receptacle 600VAC

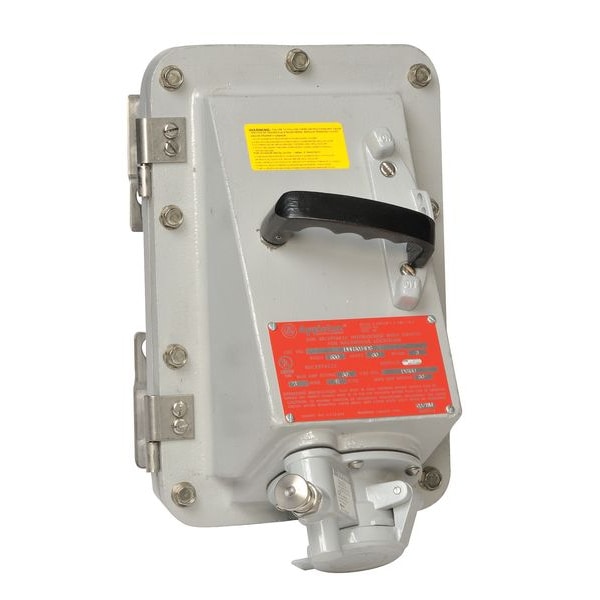

Appleton Electric 3W 4P 100A Hazardous Location Receptacle 600VAC DBR1034EH70 - main

3W 4P 100A Hazardous Location Receptacle 600VAC

  • Mfr # DBR1034EH70

  • Zoro # G3046815

product price: $5,470.99
/ea
Free Shipping & Returns

Key Features

Voltage
600V AC
NEMA Rating
3, 3R, 4, 4X, 9FG
Number of Wires
3
Number of Poles
4
Circuit Breaker Amp Rating
70 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DBR1034EH70
Zoro #
G3046815
UPC #
-
Country of Origin
Mexico

Dimensions

Hub Diameter
1.5 in
Plug Cable Diameter
.500- 1.250 thru 1.09- 2.187 or .390- 1.375

Details

Item
Receptacle
Voltage
600V AC
NEMA Rating
3, 3R, 4, 4X, 9FG
Number of Wires
3
Number of Poles
4
Circuit Breaker Amp Rating
70 A
HP
30 hp
Amps
100 A
Material
Copper-Free Aluminum
Finish
Epoxy Powder Coated
Standards
E10784, UL 1010 (UL 1203), UL 1682, UL 894
Circuit Breaker
Yes
Mounting Box
Copperfree Aluminum
Housing Material
Copper-Free Aluminum
Hub Type
Feed Through
Circuit Breaker Type
EHD 480V AC
Current Rating
100 A
Phase
Three
Contact Material
Brass
Compatible with Series
Powertite
Hazardous Location Specification
Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2
Includes Mounting Hardware
Yes
Number of Gangs
1
Insulation Material
Fiberglass-Reinforced Polyester
Enclosure Lock Type
Padlockable
Disconnect Switch
No
For Environment
Hazardous Location
Includes
Screw Cap
Resistance Properties
Waterproof
Horsepower Rating
30 hp
Grounding
Grounded
Voltage Rating
480V AC
Wire Connection Type
Quick-Disconnect Terminals
Housing Material Finish
Epoxy Powder Coated
NEMA Enclosure Rating
3, 3R, 4, 4X, 9FG
Locking Handle
Yes
Handle Type
Knob
Mounting Box Entries
Feed-Thru
Hazardous Area Classification
EBR Receptacle: Class I, Division 1 and 2, Groups B, C, D Class II, Division 1 and 2, Groups F, G Class III NEMA 3, 3R, 4, 4X, 7CD, 9FG?DBR Receptacle: Class II, Division 1 and 2, Groups F, G Class III NEMA 3, 3R, 4, 4X, 9FG
Amperage
30, 60, 100 or 150
Horsepower Ratings
1, 1.5, 2, 3, 5, 7.5, 10, 15, 20, 25, 30, 40, 50, 60 or 75
Materials and Finishes
Receptacles, mounting box, covers and plug housings are copperfree (4/10 of 1% max.) aluminum with epoxy powder coat. Insulating blocks are fiber glass reinforced polyester.

Description

Receptacle, Circuit Breaker Amp Rating 70 A, Circuit Breaker Type EHD 480V AC, Current Rating 100 A, Fuse Protection Not Applicable, Fuse Type Not Applicable, Hazardous Location Specification Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2, Locking Handle Yes, NEMA Enclosure Rating 3, 3R, 4, 4X, 9FG, Number of Poles 4, Number of Wires 3, Voltage Rating 480V AC, Compatible Plug Manufacturer Part Number Not Applicable, Disconnect Switch No
