  11. 3W 4P 30A Hazardous Location Switched Receptacle 600VAC

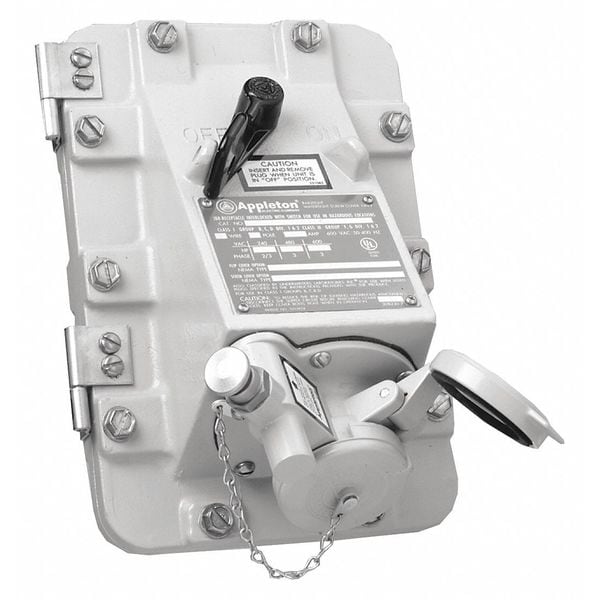

Appleton Electric 3W 4P 30A Hazardous Location Switched Receptacle 600VAC JBR3034-150 - main

3W 4P 30A Hazardous Location Switched Receptacle 600VAC

  • Mfr # JBR3034-150

  • Zoro # G4056972

product price: $2,558.99
/ea
Free Shipping & Returns

Key Features

Voltage
600V AC
NEMA Rating
3, 3R, 4, 4X, 7BCD, 9FG
Number of Wires
3
Number of Poles
4
HP
20 hp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
JBR3034-150
Zoro #
G4056972
UPC #
-
Country of Origin
Mexico

Dimensions

Hub Size
1 1/2 in
Hub Diameter
1.5 in
Overall Depth
10.28 in
Overall Height
11.75 in
Plug Cable Diameter
30 Amp: 0.500 to 1.125#8221;; 60 Amp: 0.500 to 1.375#8221;

Details

Item
Receptacle
Voltage
600V AC
NEMA Rating
3, 3R, 4, 4X, 7BCD, 9FG
Number of Wires
3
Number of Poles
4
HP
20 hp
Amps
30 A
Material
Copper-Free Aluminum
Standards
CSA C22.2 No. 182.1, CSA C22.2 No. 4, CSA Certified 038644, UL 1010 (UL 1203), UL 1682, UL 894, UL E10784
Mounting Box
Copperfree Aluminum
Finish
Epoxy Powder Coated
Hz
50-400
Circuit Breaker
No
Disconnect Switch
Yes
Hazardous Location Specification
Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2
Horsepower Rating
20 hp
Hub Type
Feed Through
Current Rating
30 A
Housing Material Finish
Epoxy Powder Coated
NEMA Enclosure Rating
3, 3R, 4, 4X, 7BCD, 9FG
Fuse Protection
Non-Fused
Grounding
Grounded
Includes Mounting Hardware
Yes
Number of Gangs
1
Locking Handle
No
Compatible with Series
Powertite
Voltage Rating
240/480/600V AC
Housing Material
Copper-Free Aluminum
Wire Connection Type
Quick-Disconnect Terminals
Horsepower
7.5, 10, 15, 20, 25, 30
Amperage
30 or 60
Hazardous Area Classification
Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups F, G; Class III NEMA 3, 3R, 4, 4X, 7BCD, 9FG
Hertz
50-400 Hz
Materials and Finishes
Receptacle housing and mounting box is copperfree (4/10 of 1% max.) aluminum with epoxy powder coat. Stainless steel captive cover bolts, mounting feet and hinges.
Mounting Box Entries
Dead-End
Phase
Three

Description

Receptacle, Circuit Breaker Amp Rating Not Applicable, Circuit Breaker Type Not Applicable, Current Rating 30 A, Fuse Protection Non-Fused, Fuse Type Not Applicable, Hazardous Location Specification Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2, Locking Handle No, NEMA Enclosure Rating 3, 3R, 4, 4X, 7BCD, 9FG, Number of Poles 4, Number of Wires 3, Voltage Rating 240/480/600V AC, Compatible Plug Manufacturer Part Number Not Applicable
