Shop APPLETON ELECTRIC

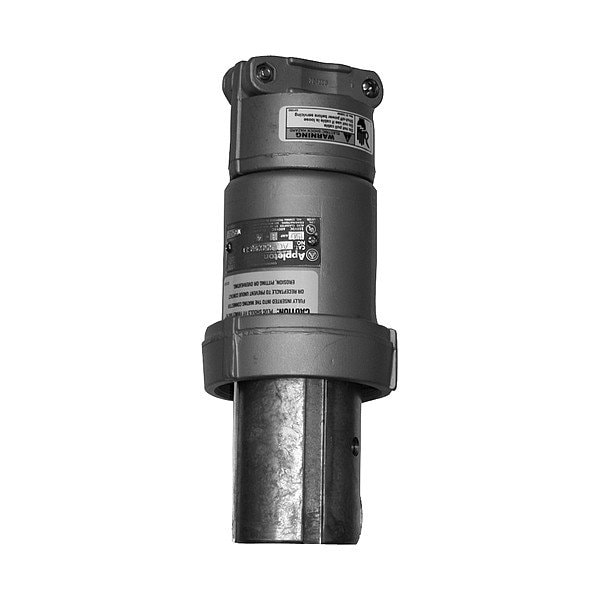

Plug

  • Mfr # ACP15034CD

  • Zoro # G022639407

product price:  $1,201.99
/ea
Free Shipping & Returns

Key Features

Outside Diameter
3.32 in
Voltage Rating
600V AC
Maximum Wire Size
2/0 AWG
Series
Powertite(TM)
Minimum Operating Temperature
-13 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ACP15034CD
Zoro #
G022639407
UPC #
781381098571
Country of Origin
Mexico

Dimensions

Outside Diameter
3.32 in
Maximum Wire Size
2/0 AWG
For Minimum Cable Diameter
0.875 in
Minimum Wire Size
2 AWG
Overall Length
10.57 in
For Maximum Cable Diameter
1.906 in
Wire Rope Length
10.57 in

Details

Voltage Rating
600V AC
Series
Powertite(TM)
Minimum Operating Temperature
-13 Degrees F
Power Indicating Light
No
Grounding
Grounded
Standards
CSA, cULus, UL
Polarized
Yes
Wire Connection Type
Wire Leads
IP Rating
Not Rated
Reverse Service
No
Item
Pin and Sleeve Plug
Current Rating
150 A
NEMA Enclosure Rating
4X
Maximum Operating Temperature
104 Degrees F
Features
These Units Offer Rough Usage Construction, a Wide Range of Amperage and Feature Widely Spaced Contacts Recessed within an Internal Arc Snuffing Chamber, Insulating Blocks and a Durable Neoprene Sealing Bushing
Housing Material Finish
Epoxy Powder Coated
Horsepower Rating
150 hp
Number of Wires
3
Housing Color
Gray
Resistance Properties
Weather Resistant
Insulation Material
Glass Filled Polyester
Housing Material
Aluminum
Grounding Style
Style 1
Number of Poles
4
Phase
Three
For Environment
Hazardous Location

Description

Pin and Sleeve Plug, Current Rating 150 A, Hazardous Location Specification Not Applicable, Horsepower Rating 150 hp, Housing Color Gray, IP Rating Not Rated, Number of Poles 4, Number of Wires 3, Phase Three, Voltage Rating 600V AC, Wire Connection Type Wire Leads, For Maximum Cable Diameter 1.906 in, For Minimum Cable Diameter 0.875 in, Grounding Grounded, Grounding Style Style 1, Housing Material Aluminum, Maximum Wire Size 2/0 AWG, Minimum Wire Size 2 AWG, NEMA Enclosure Rating 4X
