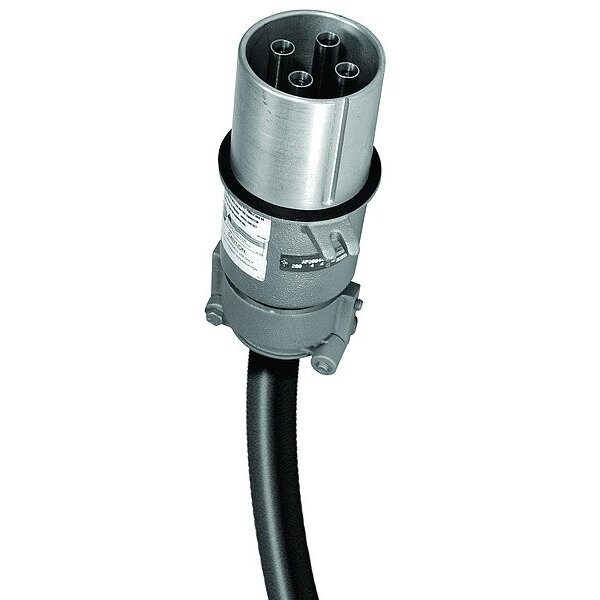

Shop APPLETON ELECTRIC

Plug

  • Mfr # AP20044ERS

  • Zoro # G322639275

product price:
$
1,664.99
/ea
Free Shipping & Returns

Key Features

Reverse Service
Yes
Maximum Operating Temperature
104 Degrees F
Maximum Wire Size
1/0 AWG
For Environment
Hazardous Location
Power Indicating Light
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
AP20044ERS
Zoro #
G322639275
UPC #
781381295512
Country of Origin
Mexico

Dimensions

Maximum Wire Size
1/0 AWG
Minimum Wire Size
1/0 AWG
Outside Diameter
6.4 in
Wire Rope Length
12.7 in
For Maximum Cable Diameter
2.5 in
For Minimum Cable Diameter
0.875 in
Overall Length
12.7 in
Length
12.7 in

Details

Reverse Service
Yes
Maximum Operating Temperature
104 Degrees F
For Environment
Hazardous Location
Power Indicating Light
No
Number of Wires
4
Series
Powertite(TM)
Phase
Three
Features
These Units Offer Rough Usage Construction, a Wide Range of Amperage and Feature Widely Spaced Contacts Recessed within an Internal Arc Snuffing Chamber, Insulating Blocks and a Durable Neoprene Sealing Bushing
Grounding
Grounded
Standards
CSA, cULus, UL
Grounding Style
Style 1
Current Rating
200 A
Horsepower Rating
200 hp
NEMA Enclosure Rating
4X
Number of Poles
4
Wire Connection Type
Wire Leads
Resistance Properties
Weather Resistant
Voltage Rating
600V AC
IP Rating
Not Rated
Polarized
Yes
Housing Material
Aluminum
Insulation Material
Glass Filled Polyester
Item
Pin and Sleeve Plug
Housing Material Finish
Epoxy Powder Coated
Housing Color
Gray
Minimum Operating Temperature
-13 Degrees F

Description

Pin and Sleeve Plug, Current Rating 200 A, Hazardous Location Specification Not Applicable, Horsepower Rating 200 hp, Housing Color Gray, IP Rating Not Rated, Number of Poles 4, Number of Wires 4, Phase Three, Voltage Rating 600V AC, Wire Connection Type Wire Leads, For Maximum Cable Diameter 2.5 in, For Minimum Cable Diameter 0.875 in, Grounding Grounded, Grounding Style Style 1, Housing Material Aluminum, Maximum Wire Size 1/0 AWG, Minimum Wire Size 1/0 AWG, NEMA Enclosure Rating 4X
