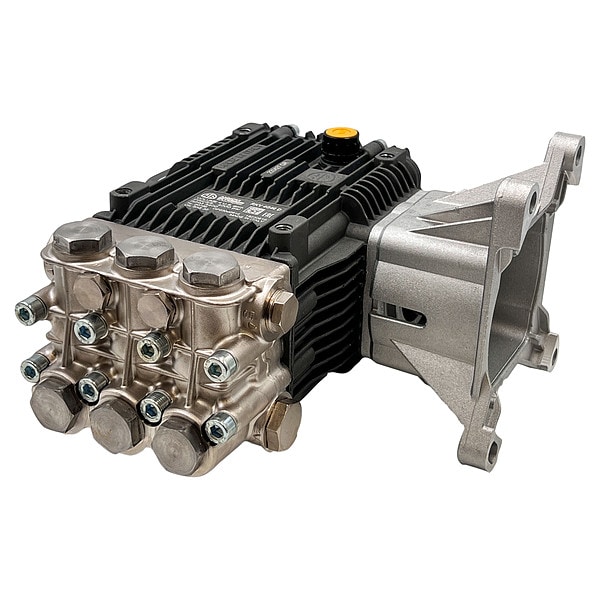

Pressure Plunger Pump, 11 hp, NPT, 1 in

  • Mfr # RKV4G40HD-F24-PKG

  • Zoro # G110474507

product price:  $467.99
/ea
Free Shipping & Returns

Key Features

Lubrication
Oil Bath
Intake Connection Type
FNPT
Power Source
Gasoline Engine
Flow Rate (Maximum)
4 gpm
Flange Type
Horizontal Gas Engine
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RKV4G40HD-F24-PKG
Zoro #
G110474507
UPC #
192216207868
Country of Origin
Italy

Dimensions

Discharge Connection Size
3/8 in
Intake Connection Size
1/2 in
Shaft Outer Diameter
1 in
Discharge Diameter
3/8 in
Inlet Diameter
1/2 in

Details

Item
Pressure Plunger Pump
Lubrication
Oil Bath
Intake Connection Type
FNPT
Power Source
Gasoline Engine
Flow Rate (Maximum)
4 gpm
Flange Type
Horizontal Gas Engine
Required Gasoline Engine Horsepower (Maximum)
17 1/5 hp
Discharge Pressure (Maximum)
4,000 psi
Operating Pressure (Maximum)
4,000 psi
Number of Pistons
3
Required Electric Motor Horsepower (Maximum)
11 hp
Drive Type
Direct-Mount
Piston Design
Triplex
Pump Head Material
Forged Brass
Plunger Material
Ceramic
Motor Speed (Maximum)
3,400 RPM
Shaft Type
Hollow
Discharge Connection Type
NPT
Engine Mounting Flange Type
SAE J609
Engine Shaft Orientation
Horizontal
Rated Speed
3,400 RPM
Drive Shaft Connection Type
Keyed
Manifold Material
Forged Brass
Pumping Application
Agriculture and Livestock Washdown, Car and Vehicle Washing, Commercial and Industrial Cleaning, Fogging and Misting, Hydro Blasting and Water Jetting, Manufacturing and Plant Maintenance, Marine and Shipyard Maintenance, Mining, Oil and Gas Services, Paint Removal and Surface Preparation, Pipe Cleaning and Sewer Jetting, Pressure Washing
Connecting Rod Material
Zinc-Aluminum
Media Temperature - Maximum
140 Degrees F
Series
RK Series
Number of Plungers
3
Pumping Element Layout
Inline
Shaft Seal Material
Buna-N
Power Source - TS Only
Gasoline Engine

Description

Pressure Plunger Pump, Discharge Connection Size 3/8 in, Discharge Connection Type NPT, Discharge Pressure (Maximum) 4,000 psi, Flow Rate (Maximum) 4 gpm, Intake Connection Size 1/2 in, Intake Connection Type FNPT, Motor Speed (Maximum) 3,400 RPM, Piston Design Triplex, Pump Head Material Forged Brass, Plunger Material Ceramic, Required Electric Motor Horsepower (Maximum) 11 hp, Required Gasoline Engine Horsepower (Maximum) 17 1/5 hp, Lubrication Oil Bath, Shaft Outer Diameter 1 in
