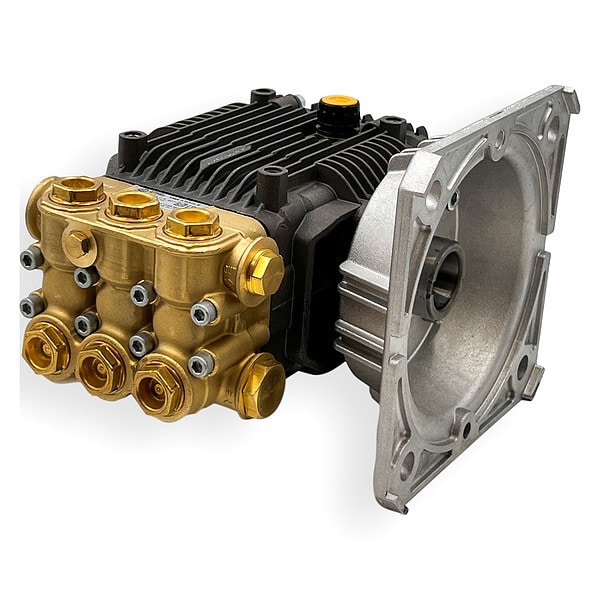

Pressure Plunger Pump, Ceramic, Forged Brass, Hollow

  • Mfr # XMA3G30E-F17-PKG

  • Zoro # G310474505

product price:  $428.99
/ea
Free Shipping & Returns

Key Features

Lubrication
Oil Bath
Manifold Material
Forged Brass
Operating Pressure (Maximum)
3,000 psi
Motor Speed (Maximum)
1,750 RPM
Bearing Type
Ball
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XMA3G30E-F17-PKG
Zoro #
G310474505
UPC #
192216216396
Country of Origin
Italy

Dimensions

Shaft Outer Diameter
1 1/8 in
Intake Connection Size
1/2 in
Discharge Connection Size
3/8 in
Discharge Diameter
3/8 in
For Electric Motor Frame Size
182C, 184C
Inlet Diameter
1/2 in

Details

Item
Pressure Plunger Pump
Lubrication
Oil Bath
Manifold Material
Forged Brass
Operating Pressure (Maximum)
3,000 psi
Motor Speed (Maximum)
1,750 RPM
Bearing Type
Ball
Flange Type
Horizontal Gas Engine
Crankshaft Material
Forged Steel
Connecting Rod Material
Zinc-Aluminum
Plunger Material
Ceramic
Number of Pistons
3
Discharge Pressure (Maximum)
3,000 psi
Pump Head Material
Forged Brass
Shaft Type
Hollow
Power Source
Electric Motor
Drive Type
Belt-Drive
Discharge Connection Type
NPT
Required Gasoline Engine Horsepower (Maximum)
9 7/10 hp
Required Electric Motor Horsepower (Maximum)
6 1/5 hp
Flow Rate (Maximum)
3 gpm
Piston Design
Triplex
Intake Connection Type
FNPT
Drive Shaft Connection Type
Keyed
Pumping Application
Agriculture and Livestock Washdown, Car and Vehicle Washing, Commercial and Industrial Cleaning, Fogging and Misting, Hydro Blasting and Water Jetting, Manufacturing and Plant Maintenance, Marine and Shipyard Maintenance, Mining, Oil and Gas Services, Paint Removal and Surface Preparation, Pipe Cleaning and Sewer Jetting, Pressure Washing
Series
XM Series
Media Temperature - Maximum
140 Degrees F
Pumping Element Layout
Inline
Shaft Seal Material
Buna-N
Number of Plungers
3
Rated Speed
1,750 RPM
Engine Shaft Orientation
Horizontal

Description

Pressure Plunger Pump, Discharge Connection Size 3/8 in, Discharge Connection Type NPT, Discharge Pressure (Maximum) 3,000 psi, Flow Rate (Maximum) 3 gpm, Intake Connection Size 1/2 in, Intake Connection Type FNPT, Motor Speed (Maximum) 1,750 RPM, Piston Design Triplex, Pump Head Material Forged Brass, Plunger Material Ceramic, Required Electric Motor Horsepower (Maximum) 6 1/5 hp, Required Gasoline Engine Horsepower (Maximum) 9 7/10 hp, Lubrication Oil Bath, Shaft Outer Diameter 1 1/8 in
