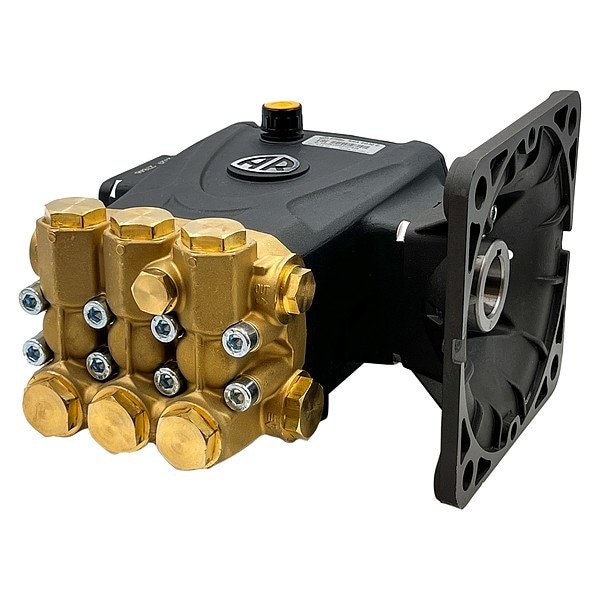

Pressure Plunger Pump, Oil Bath, Direct-Mount, Triplex

  • Mfr # RRA55G26E-F17

  • Zoro # G110474484

product price:  $474.99
/ea
Free Shipping & Returns

Key Features

Lubrication
Oil Bath
Number of Pistons
3
Operating Pressure (Maximum)
2,600 psi
Power Source
Electric Motor
Plunger Material
Ceramic
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RRA55G26E-F17
Zoro #
G110474484
UPC #
192216237841
Country of Origin
China

Dimensions

Shaft Outer Diameter
1 1/8 in
Intake Connection Size
1/2 in
Discharge Connection Size
3/8 in
For Electric Motor Frame Size
182C, 184C
Inlet Diameter
1/2 in
Discharge Diameter
3/8 in

Details

Item
Pressure Plunger Pump
Lubrication
Oil Bath
Number of Pistons
3
Operating Pressure (Maximum)
2,600 psi
Power Source
Electric Motor
Plunger Material
Ceramic
Intake Connection Type
FNPT
Shaft Type
Hollow
Drive Type
Direct-Mount
Piston Design
Triplex
Required Gasoline Engine Horsepower (Maximum)
17 3/5 hp
Motor Speed (Maximum)
1,750 RPM
Pump Head Material
Forged Brass
Required Electric Motor Horsepower (Maximum)
11 3/10 hp
Flow Rate (Maximum)
5.5 gpm
Discharge Connection Type
NPT
Discharge Pressure (Maximum)
2,600 psi
Flange Type
Horizontal Gas Engine
Pumping Application
Agriculture and Livestock Washdown, Car and Vehicle Washing, Commercial and Industrial Cleaning, Fogging and Misting, Hydro Blasting and Water Jetting, Manufacturing and Plant Maintenance, Marine and Shipyard Maintenance, Mining, Oil and Gas Services, Paint Removal and Surface Preparation, Pipe Cleaning and Sewer Jetting, Pressure Washing
Engine Shaft Orientation
Horizontal
Rated Speed
1,750 RPM
Shaft Seal Material
Buna-N
Pumping Element Layout
Inline
Series
RR Series
Drive Shaft Connection Type
Keyed
Number of Plungers
3
Connecting Rod Material
Zinc-Aluminum
Manifold Material
Forged Brass
Media Temperature - Maximum
140 Degrees F
Power Source - TS Only
Electric Motor

Description

Pressure Plunger Pump, Discharge Connection Size 3/8 in, Discharge Connection Type NPT, Discharge Pressure (Maximum) 2,600 psi, Flow Rate (Maximum) 5.5 gpm, Intake Connection Size 1/2 in, Intake Connection Type FNPT, Motor Speed (Maximum) 1,750 RPM, Piston Design Triplex, Pump Head Material Forged Brass, Plunger Material Ceramic, Required Electric Motor Horsepower (Maximum) 11 3/10 hp, Required Gasoline Engine Horsepower (Maximum) 15 hp, Lubrication Oil Bath, Shaft Outer Diameter 1 1/8 in
