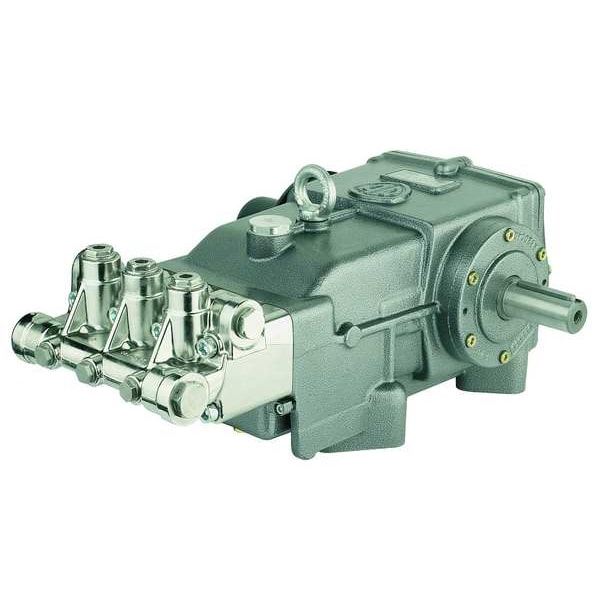

Pressure Washer Pump, 7.9 GPM, 3/4F x 1/2F

  • Mfr # RTP30N
  • Zoro # G1592735
product price:
$
5,459.99
/ea
Additional $300.00 delivery surcharge applies per item.
See details

Key Features

Type
Belt-Drive
Flow Capacity (GPM)
7.9 gpm
RPM
1,000 RPM
Shaft Dia.
35 mm
Inlet Port (In.)
3/4 F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RTP30N
Zoro #
G1592735
UPC #
-
Country of Origin
Italy

Dimensions

Shaft Dia.
35 mm
Width (In.)
18.1 in
Length (In.)
22.7 in
Height (In.)
9.1 in
Overall Length
22.7 in
Overall Width
18.1 in
Intake Connection Size
3/4 in
Shaft Outer Diameter
35 mm
Overall Height
9.1 in
Discharge Connection Size
1/2 in
Discharge Diameter
1/2 in
Inlet Diameter
3/4 in
Wire Rope Length
22.7 in
Length
22.7 in

Details

Item
Pressure Plunger Pump
Type
Belt-Drive
Flow Capacity (GPM)
7.9 gpm
RPM
1,000 RPM
Inlet Port (In.)
3/4 F
Discharge Port (In.)
1/2 Degrees F
Discharge Pressure (PSI)
7,250 psi
Max. Inlet Pressure (PSI)
50 psi
HP Required @ 2000 PSI
10.8 hp
HP Required @ 1000 PSI
5.4 hp
HP Required @ 500 PSI
2.7 hp
Seal
W-1 & W-2
Lubrication
Oil Bath
Crankshaft
Hardened Steel
HP Required @ 3000 PSI
16.3 hp
HP Required @ 5000 PSI
27.1 hp
HP Required @ 3500 PSI
19 hp
HP Required @ 2500 PSI
13.6 hp
HP Required @ 1500 PSI
8.1 hp
Pump Head
Forged Brass
Connecting Rod
Bronze
Crankcase
Cast Iron
Plunger
SST
Max. Fluid Temp. (F)
140
Driver Type
Electric Motor or Gasoline Engine
Application
High Pressure Water Applications, Including Car Wash, Pressure Wash, Sewer Jetting and Cooling Misting
Manifold Material
Forged Brass
HP Required @ 4000 PSI
21.7 hp
Bearings
Roller
Media Temperature (Maximum)
140 Degrees F
Operating Pressure (Maximum)
7,520 psi
Piston Design
Triplex
Number of Pistons
3
Flow Rate (Maximum)
7.9 gpm
Pump Head Material
Forged Brass
Discharge Connection Type
BSP
Discharge Pressure (Maximum)
7,250 psi
Flow Rate (Minimum)
0.79 gpm
Shaft Type
Solid
Flange Type
Horizontal Plunger Pump
Crankcase Material
Cast Iron
Plunger Material
Stainless Steel
Crankshaft Material
Hardened Steel
Seal Type
Mechanical Type 1, Mechanical Type 2
Connecting Rod Material
Bronze
Required Gasoline Engine Horsepower (Maximum)
61 3/10 hp
Bearing Type
Roller
Intake Connection Type
BSP
Drive Type
Belt-Drive
Required Electric Motor Horsepower (Maximum)
39 3/10 hp
Motor Speed (Maximum)
1,000 RPM
Pump Drive Configuration
Hydraulic-Driven
Number of Plungers
3
Compatible Drive Method
Belt Drive, Flex Coupling, Hydraulic Drive
Pumping Application
Agriculture and Livestock Washdown, Car and Vehicle Washing, Commercial and Industrial Cleaning, Fogging and Misting, Hydro Blasting and Water Jetting, Manufacturing and Plant Maintenance, Marine and Shipyard Maintenance, Mining, Oil and Gas Services, Paint Removal and Surface Preparation, Pipe Cleaning and Sewer Jetting, Pressure Washing
Shaft Seal Type
Lip
Engine Shaft Orientation
Horizontal
Rated Speed
1,000 RPM
Drive Shaft Connection Type
Keyed
Power Source
Hydraulic Motor
Shaft Seal Material
Buna-N
Media Temperature - Maximum
140 Degrees F
Pumping Element Layout
Inline
Series
RTP Series
Power Source - TS Only
Hydraulic Motor
Power Source - old
Hydraulic Motor

Description

Pressure Plunger Pump, Discharge Connection Size 1/2 in, Discharge Connection Type BSP, Discharge Pressure (Maximum) 7,250 psi, Flow Rate (Maximum) 7.9 gpm, Intake Connection Size 3/4 in, Intake Connection Type BSP, Motor Speed (Maximum) 1,000 RPM, Piston Design Triplex, Pump Head Material Forged Brass, Plunger Material Stainless Steel, Required Electric Motor Horsepower (Maximum) 39 3/10 hp, Required Gasoline Engine Horsepower (Maximum) 61 3/10 hp, Lubrication Oil Bath
