  9. Hydronic Circulating Pump, 1/10 hp, 115V, 1 Phase, Flange Connection

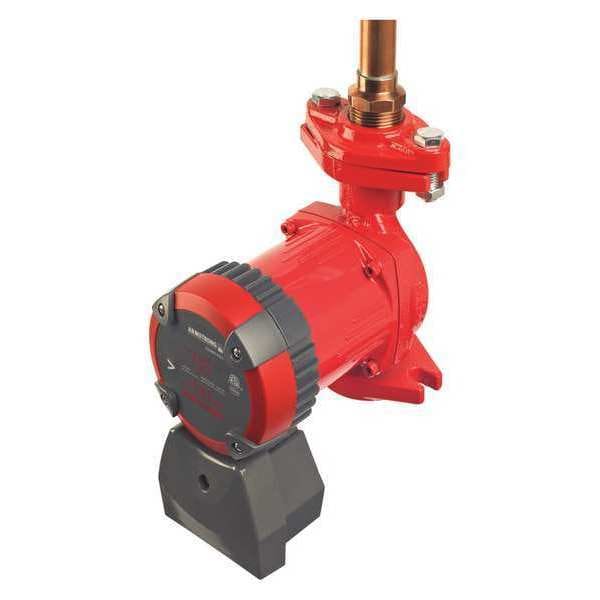

Armstrong Hydronic Circulating Pump, 1/10 hp, 115V, 1 Phase, Flange Connection 180203-687 - main

Hydronic Circulating Pump, 1/10 hp, 115V, 1 Phase, Flange Connection

  • Mfr # 180203-687

  • Zoro # G5414328

product price: $553.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Phase
Single
Horsepower
1/10 hp
Inlet/Outlet Size
1/2 in
Series
Compass H20-20
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
180203-687
Zoro #
G5414328
UPC #
672807420758
Country of Origin
China

Dimensions

Inlet/Outlet Size
1/2 in
Face to Face Dimension
6 1/2 in
Overall Length
7.11 in
Overall Height
6.5 in
Overall Width
4 in
Compatible Intake Pipe Size
1/2 in
Compatible Discharge Pipe Size
1/2 in
Manufacturer Warranty Length
5 yr
For Discharge Pipe Diameter
1/2 in
For Inlet Pipe Diameter
1/2 in

Details

Item
Hydronic Circulating Pump
Voltage
115V AC
Phase
Single
Horsepower
1/10 hp
Series
Compass H20-20
Pump Type
Energy Efficient
Number of Speeds
Variable
Max. GPM @ Head
20 gpm @ 0 ft
Maximum Feet of Head
20 ft
Min. GPM @ Head
0 gpm @ 20 ft
Connection Type
Flange
Pump Mount
In Line
Amps
0.65 A
Thermal Protection
yes
Loop Configuration
Open or Closed
Best Efficiency GPM @ Head
10 gpm @ 10 ft
Compliance
NSF-372
Standards
ETL
Drive Type
Direct
Impeller Material
Plastic
Includes
Flange Gaskets
Shut-Off
20 ft
Mechanical Seal
Wet Rotor
Shaft Material
Ceramic
Features
High Efficiency, Maintenance Free
Maximum Flow Rate @ 1 Feet of Head
19 gpm
Maximum Flow Rate @ 5 Feet of Head
15 gpm
Maximum Flow Rate @ 50 Feet of Head
[DELETE]
Rotor Type
Wet
Pump Housing Material
Cast Iron
Flange or Union Included
No
Maximum Flow Rate @ 15 Feet of Head
5 gpm
Maximum Flow Rate @ 20 Feet of Head
0 gpm
For Use With Potable Systems
No
Maximum RPM
3,000 RPM
Nameplate Voltage
115V AC
Maximum Media Temperature
230 Degrees F
Series Family
Compass H
Compatible Media Type
Water
Maximum Operating Pressure
150 psi
Body Gasket Material
EPDM
Maximum Flow Rate @ 10 Feet of Head
10 gpm
Flow Rate - Maximum
20 gpm
Includes Flange
No Flange Included
Full Load Current
0.65 A
Feet of Head - Maximum
20 ft
Operating Pressure - Maximum
150 psi
Includes Union
No Union Included
Includes Volute
No Volute Included
Pump Casing Material
Cast Iron
Media Temperature - Maximum
230 Degrees F
Connection Standard
Flange
Revolutions Per Minute - Maximum
3,000 RPM
For Low Lead Compliance Level
CE
Media Temperature - Minimum
35.6 Degrees F

Description

Hydronic Circulating Pump, Compatible Intake Pipe Size 1/2 in, Connection Type Flange, Face to Face Dimension 6 1/2 in, Flange or Union Included No, For Use With Potable Systems No, Horsepower 1/10 hp, Maximum Feet of Head 20 ft, Maximum Flow Rate @ 10 Feet of Head 10 gpm, Maximum Flow Rate @ 15 Feet of Head 5 gpm, Maximum Flow Rate @ 1 Foot of Head 19 gpm, Nameplate Voltage 115V AC, Number of Speeds Variable, Phase Single, Pump Type Energy Efficient, Series Family Compass H

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
