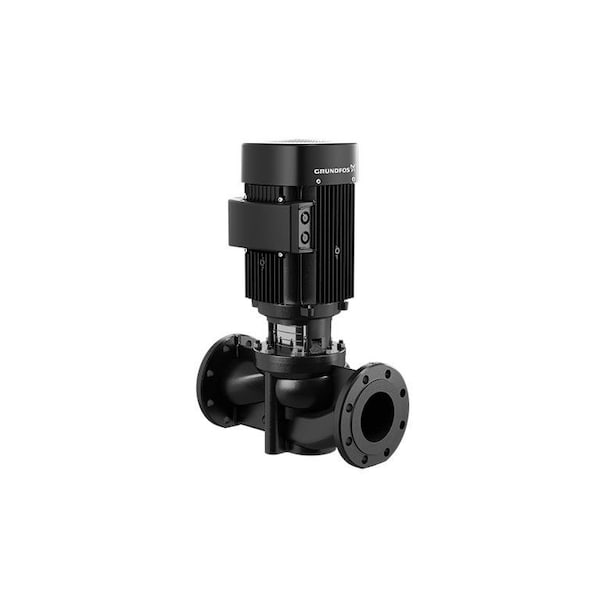

1/3 HP 115-230V Single-Stage Close-Coupled In-Line Centrifugal Pump
Mfr # 96411792
Zoro # G410724425
product price:Â
$
8,030.99
/ea
Free Shipping & Returns
Key Features
Voltage - Pumps
1 x 115/230 V
Motor RPM
1725 rpm
Height
6.375 in
Motor Type
Baldor, TEFC
Amps
6/3 A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 96411792
- Zoro #
- G410724425
- UPC #
- 5700390523930
- Country of Origin
- United States
Dimensions
- Height
- 6.375 in
- Width
- 13.5 in
- Length
- 18.125 in
- Diameter
- 3.43 in
Details
- Voltage - Pumps
- 1 x 115/230 V
- Motor RPM
- 1725 rpm
- Motor Type
- Baldor, TEFC
- Amps
- 6/3 A
- Hz
- 60 Hz
- Service Factor
- 1.35
- Insulation Class
- B
- Weight
- 59.2 lbs
- Standards
- UL Recognized Component, CSA
- Color
- Bronze
- Rated Flow
- 44 US pgm
- Primary Shaft Seal
- BUBE
- Application
- Hot Water Recirculation
- Material
- Bronze, Stainless Steel
- Liquid Temperature Range
- 5°F - 284°F
Description
Grundfos TP B pumps with pump housing in bronze and are single-stage, close-coupled in-line centrifugal pumps with mechanical shaft seal and primely for applications such as hot water recirculation. The pumps are fitted with fixed speed motors.
