  9. Float Type Air Vent, 219 psi
Shop All Pump Parts
Armstrong International

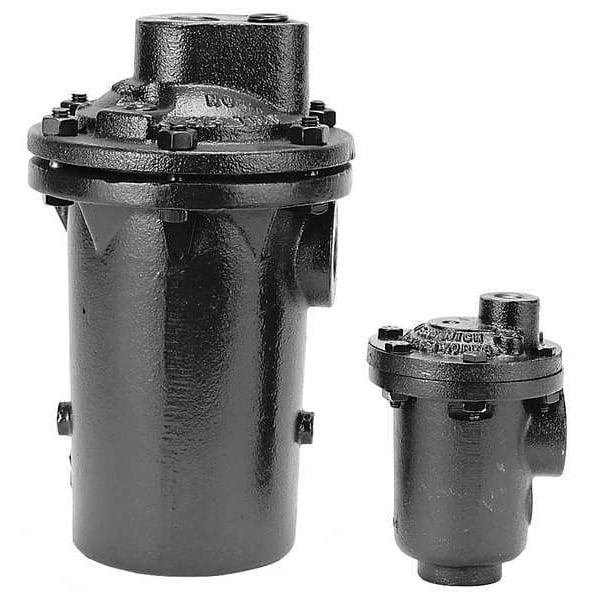

Float Type Air Vent, 219 psi

product price: $268.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Material of Construction cast iron
  • Max. Temp. (F) 200 Degrees F
  • Height (In.) 5 1/2 in
  • Width (In.) 3 3/4 in
  • Max. Working Pressure (PSI) 219 psi
See all product information

Product Information

Dimensions

Height (In.) 5 1/2 in
Width (In.) 3 3/4 in
Overall Length 5 1/2 in
Overall Width 3 3/4 in
Outlet Port Connection Size 1/4 in
Overall Depth 5 1/2 in
Relief Port Size #38
Inlet Port Connection Size 3/4 in

Details

Item Air Vent
Material of Construction cast iron
Max. Temp. (F) 200 Degrees F
Max. Working Pressure (PSI) 219 psi
Inlet 3/4 in
Outlet 1/4 in
Float Material Stainless Steel
Application Steam Traps
Standards PED
Body Material Cast Iron
Relief Port Location Top
Inlet Port Connection Type NPT
Operating Pressure - Maximum 219 psi
Lever Assembly Material Stainless Steel
Manufacturer Series 1AV
Operating Temperature - Maximum 450 Degrees F
Outlet Port Connection Type NPT
Number of Outlet Ports 1
Outlet Port Connection Gender Female
Configuration Angle/In-line
Installation Orientation Vertical
Inlet Port Location Side
Product Type Air Vent
For Media Steam
Distance Between Inlet and Outlet Port 13/16 in
Gasket Material Non-Asbestos Fiber
Allowable Pressure - Maximum 300 psi
Cap Material Cast Iron
Port Adjustability Fixed
Number of Inlet Ports 1
Inlet Port Connection Gender Female
Release Method Automatic
Port Types Included Air Vent

Description

Air Vent, Air Vent Connection Gender Not Applicable, Air Vent Connection Size Not Applicable, Air Vent Connection Type Not Applicable, Allowable Pressure - Maximum 300 psi, Application Steam Traps, Body Material Cast Iron, Cap Material Cast Iron, Configuration Angle/In-line, Distance Between Inlet and Outlet Port 13/16 in, Expansion Tank Connection Gender Not Applicable, Expansion Tank Connection Size Not Applicable, Float Material Stainless Steel, For Media Steam
