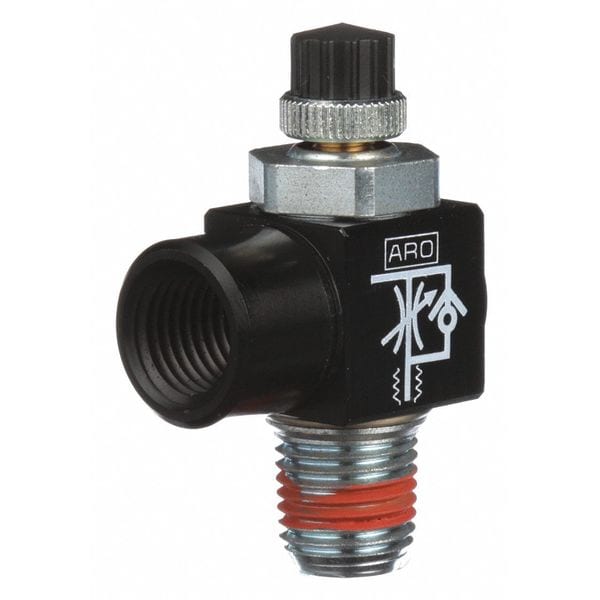

Cylder Port Flow Control, 1/4, MNPT xFNPT

product price: $39.69
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Valve Style Elbow
  • Connection MNPT x FNPT
  • Body Material Stainless Steel
  • Valve Port Size 1/4 in
  • Connection Type NPT
See all product information

Product Information

Dimensions

Valve Port Size 1/4 in
Pipe Size 1/4"
Valve Body Size 2/3 in
Connection Size 1/4 in
Air Connection Size 1/4 in

Details

Valve Style Elbow
Item Cylinder Port Flow Control Valve
Connection MNPT x FNPT
Body Material Stainless Steel
Connection Type NPT
Valve Flow Out
Body Material - Valves Nickel-Plated Brass
Pressure Range 15 to 150 psi
Adjustment Knurled
Style Elbow
Flow Out
Temp. Range -32 Degrees to 158 Degrees F
Maximum Flow Rate 3.5 cfm
Air Connection Gender Female
Adjustment Type Knurled
Body Material Finish Nickel Plated
Minimum Operating Temperature -32 Degrees F
Maximum Operating Temperature 158 Degrees F
Air Connection Type NPT
Minimum Operating Pressure 14.5 psi
Maximum Operating Pressure 145 psi
Fitting Style Elbow
Connection Gender Male
Metering Direction Meter Out

Description

Cylinder Port Flow Control Valve, Adjustment Type Knurled, Valve Body Size 2/3 in, Air Connection Size 1/4 in, Connection Type NPT, Connection Gender Male, Connection Size 1/4 in, Air Connection Type NPT, Metering Direction Meter Out, Body Material Stainless Steel, Maximum Operating Pressure 145 psi, Minimum Operating Pressure 14.5 psi, Maximum Flow Rate 3.5 cfm, Minimum Flow Rate Not Applicable, Fitting Style Elbow, Body Material Finish Nickel Plated, Maximum Operating Temperature 158 Degrees F
