Shop All Diaphragm Pumps
Aro

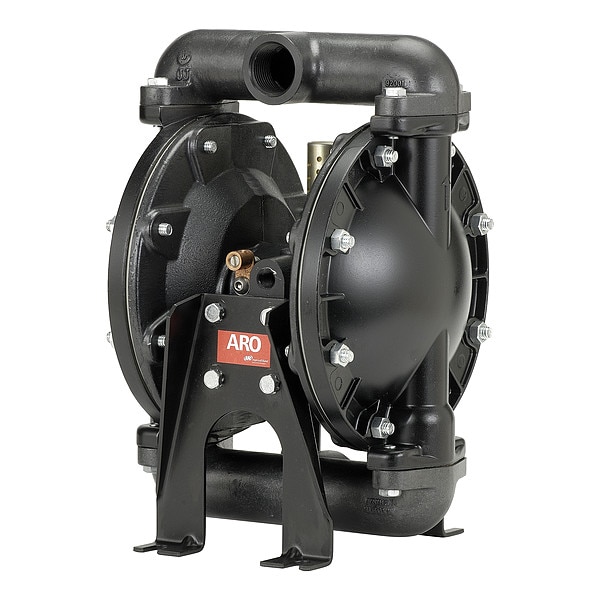

Diaphragm Pump, 35Gpm, Nitrile/Nitrile, 1

product price: $1,370.70
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pump Operation Type Air
  • Includes (2) Screws
  • Standards ANSI S1.13-1971, CAGI-PNEUROP S5.1
  • Check Seat Material Aluminum
  • Diaphragm Material Buna-N
See all product information

Product Information

Dimensions

Overall Height 12.5 in
Overall Length 8.6 in
Overall Width 7.3 in
Media Intake Connection Size 1 in
Media Discharge Connection Size 1 in
Solid Diameter (Maximum) 0.12 in
Air Intake Connection Size 1/4 in

Details

Pump Operation Type Air
Includes (2) Screws
Standards ANSI S1.13-1971, CAGI-PNEUROP S5.1
Check Seat Material Aluminum
Diaphragm Material Buna-N
Item Diaphragm Pump
Valve Type Ball
Manifold Connection Single Port
Manifold Connection Type NPT
Operating Pressure (Maximum) 120 psi
Series 66610
Pump Assembly Type Bolt
Media Discharge Location Top
Flow Rate @ 120 psi 35 gpm
Mounting Hardware Material Steel
Flow Rate (Maximum) 35 gpm
Media Intake Location Bottom
Media Discharge Connection Type NPTF
Air Intake Connection Type NPT
Media Temperature (Maximum) 180 Degrees F
Air Intake Pressure (Maximum) 120 psi
Valve Material Buna-N
Media Intake Connection Type NPTF
Wetted Housing Material Aluminum

Description

Diaphragm Pump, Air Intake Connection Size 1/4 in, Air Intake Connection Type NPT, Check Seat Material Aluminum, Diaphragm Material Buna-N, Flow Rate (Maximum) 35 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 in, Media Discharge Connection Type NPTF, Media Discharge Location Top, Media Intake Connection Size 1 in, Media Intake Connection Type NPTF, Media Intake Location Bottom, Media Temperature (Maximum) 180 Degrees F, Operating Pressure (Maximum) 120 psi
