  9. Double Diaphragm Pump, Cast iron, Air Operated, Santoprene, 90 GPM
Shop All Diaphragm Pumps
Aro

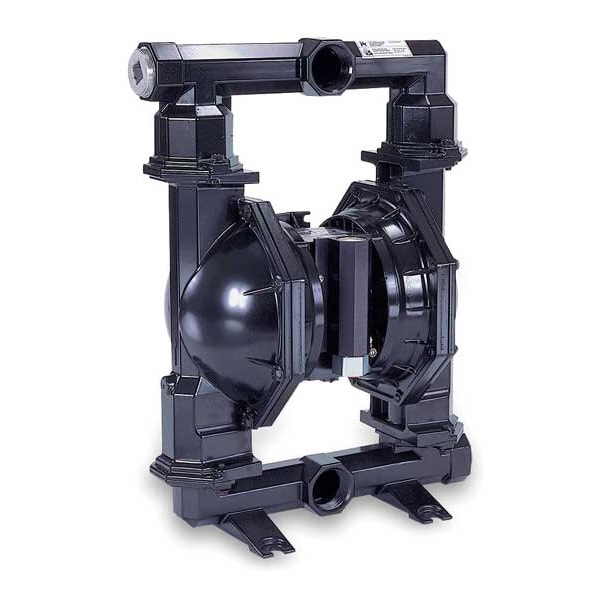

Double Diaphragm Pump, Cast iron, Air Operated, Santoprene, 90 GPM

product price: $2,054.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Housing Material - Pumps Cast Iron
  • Diaphragm Material - Pumps Santoprene(R)
  • Max. Flow 90 gpm
  • Pump Operation Type Air
  • Max. Temp - Pumps 200 Degrees F
See all product information

Product Information

Dimensions

Inlet/Outlet Size 1 1/2 in
Air Inlet Size 1/2 in FNPT
Max. Dia. Solids 1/4 in
Manufacturers Warranty Length 5 yr
Overall Height 19.6 in
Overall Width 12 in
Overall Length 13.1 in
Media Discharge Connection Size 1 1/2 in
Media Intake Connection Size 1 1/2 in
Air Intake Connection Size 1/2 in
Solid Diameter (Maximum) 0.25 in

Details

Housing Material - Pumps Cast Iron
Diaphragm Material - Pumps Santoprene(R)
Max. Flow 90 gpm
Item - Air Operated Pumps Double Diaphragm Pump
Pump Operation Type Air
Max. Temp - Pumps 200 Degrees F
Connection Style NPT
Agency Compliance ATEX, CE, REACH, RoHS
Self-Priming Wet 15 ft
Valve Type Ball
Body Material Cast iron
Diaphragm Material Santoprene
Operation Type Air Operated
Max. Operating Pressure 120 psi
Manifold Connection Single Port
Check Seat Material 316 Stainless Steel
Max. Flow GPM 90 gpm
Item Double Diaphragm Pump
Self-Priming Dry 10 ft
Ball Material Santoprene(R)
Max. Temp. 200 Degrees F
Standards ATEX Certified
Flow Rate @ 70 psi 80 gpm
Non-Wetted Housing Material Aluminum
Chemical Compatibility Alcohol, Antifreeze, Diesel Exhaust Fluid, Water
Priming Self-Priming
Pump Assembly Type Bolt
NPSHr 30 ft of head
Flow Rate (Maximum) 90 gpm
Flow Rate @ 90 psi 87.2 gpm
Media Intake Connection Type NPTF
Series Family Pro
Flow Rate @ 50 psi 75 gpm
Valve Material Santoprene
Media Discharge Connection Type NPTF
Media Temperature (Minimum) -40 Degrees F
For Use With Potable Systems No
Air Intake Pressure (Maximum) 120 psi
Flow Rate @ 60 psi 78 gpm
Manifold Connection Type NPT
Media Discharge Location Center
Wetted Housing Material Cast Iron
Air Intake Connection Type NPT
Mounting Hardware Material Steel
Series 6661XX
Flow Rate @ 100 psi 89 gpm
Operating Pressure (Maximum) 120 psi
Flow Rate @ 80 psi 84.5 gpm
Nameplate Voltage N
Media Temperature (Maximum) 225 Degrees F
Flow Rate @ 120 psi 90 gpm
Media Intake Location Center
Air Consumption (Maximum) 100 scfm
Feet of Head (Maximum) 289 ft
Flow Rate @ 40 psi 70 gpm
Viscosity (Maximum) 40,000 cps

Description

Double Diaphragm Pump, Air Consumption (Maximum) 100 scfm, Air Intake Connection Size 1/2 in, Air Intake Connection Type NPT, Check Seat Material 316 Stainless Steel, Diaphragm Material Santoprene, Feet of Head (Maximum) 289 ft, Flow Rate (Maximum) 90 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 1/2 in, Media Discharge Connection Type NPTF, Media Discharge Location Center, Media Intake Connection Size 1 1/2 in, Media Intake Connection Type NPTF
